Overview

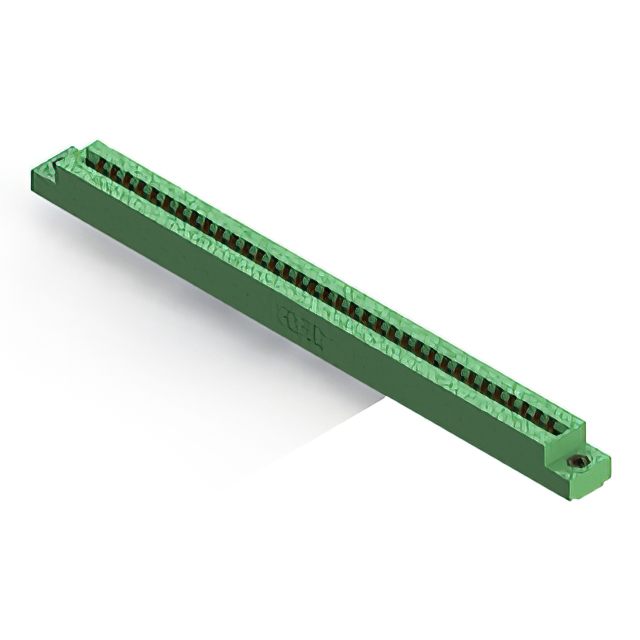

The EDAC Inc. 306-035-521-108 is a dual female edgeboard connector designed for card-edge applications. It features 70 positions with a contact pitch of 0.156 inches (3.96 mm). The component utilizes a single row configuration and is constructed with black insulators rated for high-temperature environments. This connector supports standard card edge interfaces, providing reliable electrical connections in industrial and commercial settings.

Feature Summary

• Dual female contact configuration for secure board insertion
• High-temperature resistant black insulator construction
• Single row design accommodating 70 connection points

Applications

• Industrial control systems requiring robust card-edge connections
• Commercial electronic equipment utilizing standard PCB modules
• Communication hardware interfacing with expansion cards

Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your system requirements. Ensure that the ordering suffix matches the exact specifications needed for your application. Cross-reference the manufacturer's lead time information prior to procurement planning to align with production schedules. Confirm that the component meets all necessary environmental ratings for your intended operating conditions.

Selection Notes

Select this connector when a dual female interface with 70 positions is required for card-edge mounting. Consider the 0.156-inch pitch and single-row layout to ensure mechanical fit with the target printed circuit board. Evaluate the high-temperature insulation properties if the application involves elevated thermal environments. Verify that the physical dimensions and termination style align with the assembly constraints.

Part Context

This component belongs to the EDAC edgeboard connector family, which specializes in card-edge solutions. The series offers various configurations including different row counts, contact finishes, and mounting options. The 306 series specifically denotes standard card edge connectors with defined pitch and position counts, serving as a critical interconnection element in modular electronic designs.

Replacement Considerations

The 356-035-521-108 is a related variant within the EDAC lineup offering similar positioning but potentially different termination or mounting characteristics. Verify functional equivalence before substitution, as suffix changes may alter specific attributes without changing the core connector type.
