306-035-521-112

$16.58

Description：CONN EDGE DUAL FMALE 70POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:3a487768c854 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 70POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：35
Number of Positions：70
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-035-521-112

Overview

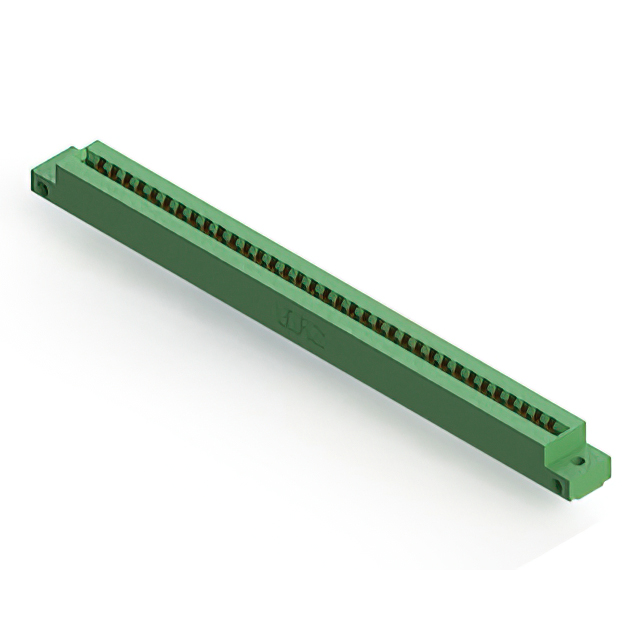

The EDAC Inc. model 306-035-521-112 is a standard card edge connector featuring 70 positions with a 3.96 mm (0.156 inch) pitch. It utilizes gold-plated contacts and supports a nominal printed circuit board thickness of 1.57 mm (0.062 inch). The component employs a low-profile insulator body and is designed for panel mount installation with a vertical orientation.

Feature Summary

Accepts single centerline row PCBs with nominal 1.57 mm thickness
Features a low-profile insulator body design
Utilizes gold contact plating for reliable signal transmission

Applications

Medical interconnect solutions
Agricultural technology equipment
Industrial control systems

Procurement Notes

Verify the specific ordering suffix to confirm exact pin count, termination style, and mounting configuration. Ensure compatibility with the target PCB thickness and panel mounting requirements before procurement. Cross-reference official datasheets to validate material specifications and environmental ratings against project constraints.

Selection Notes

Select this component when a high-density connection with 70 positions is required in a vertical panel-mount application. The 3.96 mm pitch accommodates standard board layouts while the low-profile design aids in space-constrained enclosures. Verify that the gold contact plating meets the necessary conductivity and corrosion resistance standards for the intended operational environment.

Part Context

This connector belongs to the EDAC 306 series, which provides comprehensive interconnect solutions for various sectors including computing, medical, and industrial applications. EDAC specializes in card edge and rack & panel connectors, offering extensive customization options and robust quality assurance protocols for global OEM distribution channels.

Replacement Considerations

Compatible substitutes within the 306 series include part numbers such as 306-035-521-102 and 306-035-521-108. These alternatives share similar form factors and electrical characteristics but may differ in pin count or specific termination details. Always verify dimensional drawings and mating interface specifications before substitution.
