Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

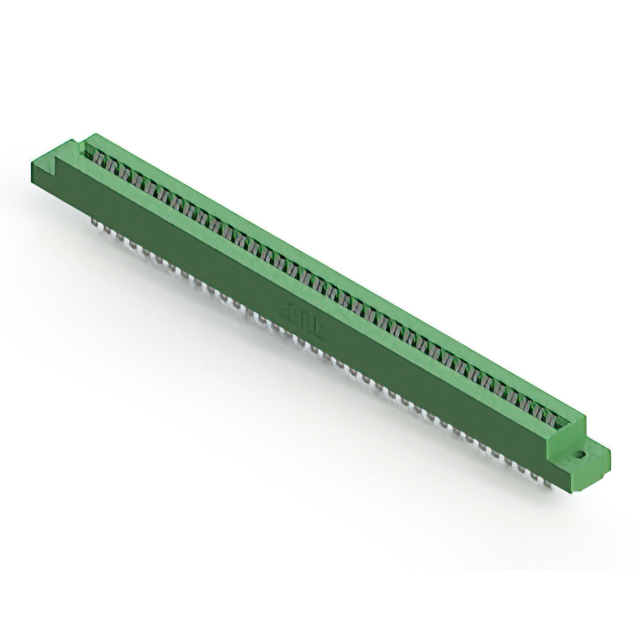

The EDAC Inc. 306-036-400-102 is a standard card edge connector receptacle featuring 36 positions in a single central row. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed for .062 inch (1.57 mm) nominal thickness printed circuit boards. The component employs copper alloy contacts with gold plating to ensure reliable signal transmission. Rated for 5 A current, it offers an insulation resistance of 5 GOhms. The housing is constructed from thermoplastic material, providing durability for panel mount applications.
Feature Summary
- Single centerline row configuration for simplified board layout
- Gold-plated copper alloy contacts for corrosion resistance
- Thermoplastic insulator body for structural integrity
Applications
- Panel-mounted electronic assemblies requiring card edge interfaces
- Industrial control systems utilizing standard PCB thicknesses
- Communication equipment backplanes
Procurement Notes
Verify the specific suffix code against official EDAC documentation to confirm exact pin count and termination style. Ensure the ordering part number matches the required 36-position configuration and 3.96 mm pitch. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.
Selection Notes
Select this component when a single-row card edge interface with 3.96 mm spacing is required. The 36-position count suits moderate-density interconnects. Verify that the application environment does not exceed the thermal limits of the standard thermoplastic housing. Ensure the mating card thickness aligns with the 1.57 mm design specification for proper retention.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting options. The 306-036-400-102 specifically denotes a 36-position variant with gold contacts and thermoplastic construction, intended for general-purpose vertical panel mounting applications.
Replacement Considerations
Consult EDAC official substitution lists for direct replacements. Cross-reference compatible parts within the 306 series for alternative position counts or termination styles.
