Product Detailed Parameters

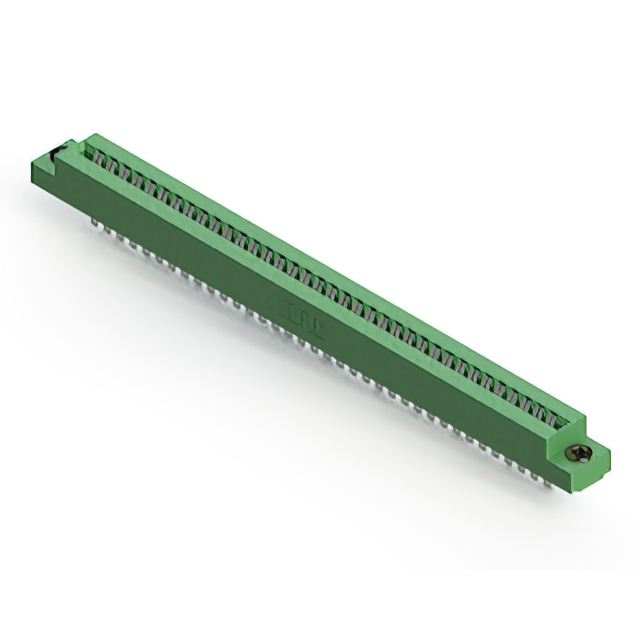

- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview
The EDAC Inc. model 306-036-400-103 is an edgeboard connector belonging to the 306 series, designed for high-density applications. It features a dual female configuration with 72 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96 mm) pitch and supports a board thickness of 0.031 inches (0.79 mm). Constructed with copper alloy contacts plated with gold, it ensures reliable signal transmission. The housing is made from thermoplastic polyester, providing durability and environmental resistance.
Feature Summary
- Dual female contact configuration for secure card insertion
- Gold-plated copper alloy contacts for enhanced conductivity
- Thermoplastic polyester housing for structural stability
Applications
- High-density electronic interconnect systems
- Industrial control panel connections
- Telecommunications equipment backplanes
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm pin count and plating specifications. Ensure compatibility with target PCB stack-up dimensions before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status through current datasheets.
Selection Notes
Select this component when a dual-row edge connector with 72 positions is required. Verify that the mating card thickness matches the 0.031-inch specification. Consider the 0.156-inch pitch for trace routing constraints. Evaluate thermal requirements against the thermoplastic polyester housing limits.
Part Context
This part belongs to the EDAC 306 series of edgeboard connectors, which are characterized by their robust construction and suitability for demanding environments. The series offers various position counts and mounting options, catering to diverse industrial and commercial connectivity needs within the broader EDAC product portfolio.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult EDAC technical support for direct equivalents or cross-reference guides based on mechanical and electrical parameters.
