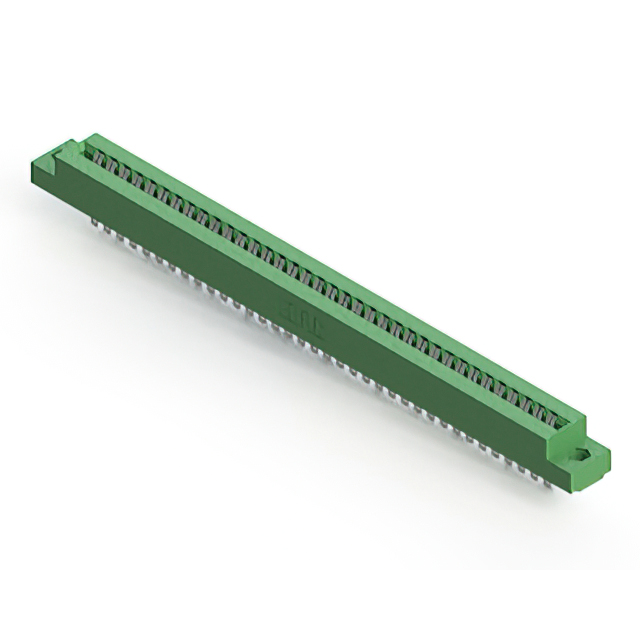

306-036-400-104

$15.89

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:463a0982be65 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：36
Number of Positions：72
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-036-400-104

Overview

The EDAC Inc. 306-036-400-104 is a standard card edge connector receptacle designed for dual-edge board insertion. It features 72 positions with a contact spacing of 0.156 inches (3.96 mm). The component utilizes tin-plated copper alloy contacts and a green insulator body. It supports PCB thicknesses up to 0.156 inches and is intended for through-hole vertical mounting. This series accommodates nominal board thicknesses of 0.062 inches, providing a low-profile solution for high-density interconnect applications.

Feature Summary

Dual female contact configuration for secure dual-edge card engagement
Low-profile insulator body design for space-constrained assemblies
Through-hole termination method ensuring robust mechanical stability

Applications

High-density computing and storage systems
Industrial control modules requiring reliable edge connections
Aerospace and defense electronic sub-assemblies

Procurement Notes

Verify the specific ordering suffix to confirm plating type and flange configuration. Ensure the target PCB layout matches the 0.156-inch centerline requirement. Confirm that the manufacturing lead time aligns with project schedules, as availability may vary by region. Cross-reference the RoHS compliance status with current regulatory requirements for the destination market before finalizing procurement orders.

Selection Notes

Select this part when a dual-edge connection is required for boards with a nominal thickness of 0.062 inches. The 72-position count suits applications needing moderate pin density within a single row. Consider the tin plating for general-purpose use rather than high-cycle environments. Verify that the vertical mounting style fits the enclosure constraints and that the through-hole process is compatible with the assembly line capabilities.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in accommodating various board thicknesses and contact counts. EDAC designs these connectors for global distribution channels, focusing on quality assurance and rigorous inspection protocols to meet worldwide standards for computing, medical, and industrial sectors.
