306-036-420-102

Overview

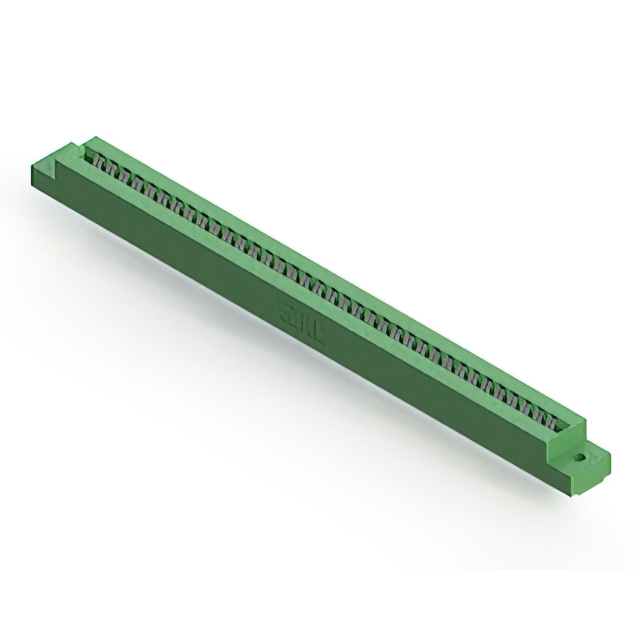

The EDAC Inc. 306-036-420-102 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. This dual female header features 72 positions with a contact spacing of 0.156 inches (3.96 mm). It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission. The unit has a current rating of 5 A and an insulation resistance of 5 GOhms. The insulator body is made of thermoplastic material.

Feature Summary

• Dual female configuration providing robust connection for double-sided card edge PCBs
• Vertical orientation design suitable for secure panel mounting installations
• Gold-plated copper alloy contacts ensuring high conductivity and corrosion resistance
• Thermoplastic insulator body offering structural stability and electrical isolation

Applications

• Industrial control systems requiring reliable card-to-board interfaces
• Medical equipment utilizing modular circuit card architectures
• Aerospace and defense electronic assemblies demanding durable interconnects
• Communications network hardware infrastructure components

Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and plating specifications before ordering. Ensure compatibility with target PCB thickness and panel cutout dimensions. Confirm RoHS compliance status through manufacturer datasheets as regulatory requirements vary by region and production batch. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when a high-density 72-position interface is required for vertical panel integration. The 0.156-inch pitch accommodates standard board layouts while maintaining adequate spacing. Verify that the 5 A current rating meets system power distribution needs. Consider the thermoplastic housing durability for the intended environmental conditions. Ensure the dual female design aligns with the mating card edge geometry.

Part Context

This connector belongs to EDAC's 306 series, which specializes in standard card edge solutions for computing, storage, and industrial sectors. The series offers various position counts and mounting styles. EDAC provides comprehensive interconnect solutions for OEMs globally, emphasizing quality assurance and precise manufacturing tolerances for critical electronic applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for direct equivalents or cross-reference options based on specific mechanical and electrical requirements.
