306-036-420-103

$17.60

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:748ec04ccbc1 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：36
Number of Positions：72
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-036-420-103

Overview

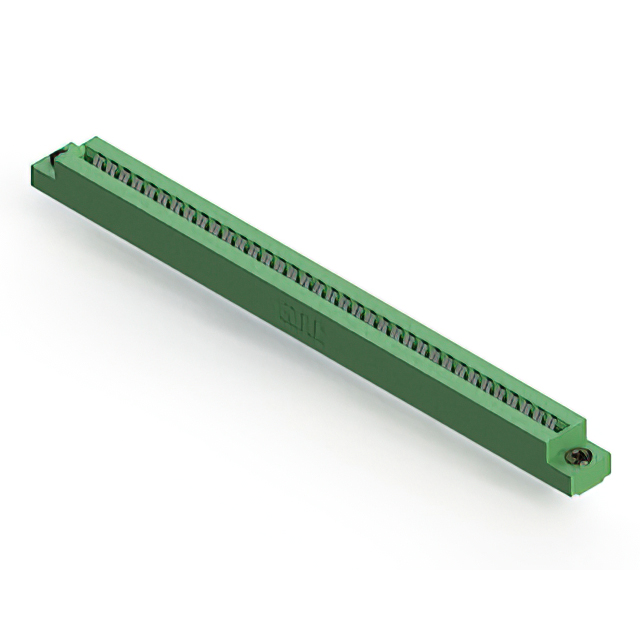

The EDAC Inc. 306-036-420-103 is a standard card edge connector receptacle featuring 36 positions arranged in a single central row. It utilizes a .156 inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of .062 inch (1.57mm). The component employs copper alloy contacts with gold plating and a green diallyl phthalate (DAP) insulator body. Designed for panel mount installation, it supports dual female termination configurations.

Feature Summary

Single centerline row configuration for compact board integration
Gold-plated copper alloy contacts ensuring reliable signal transmission
Low profile insulator body constructed from Diallyl Phthalate material

Applications

Industrial control systems requiring robust card edge interfaces
Telecommunications equipment utilizing standard density connectors
Test and measurement instrumentation hardware

Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact termination style and plating specifications. Ensure compatibility with target PCB thickness tolerances before procurement. Confirm current product status as active through authorized channels to avoid obsolete inventory risks.

Selection Notes

Select this component when a single-row, 36-position interface is required with .156 inch pitch. Verify that the application environment does not exceed standard operating temperature ranges. Consider panel mount constraints and ensure sufficient clearance for the low-profile housing design during mechanical assembly planning.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides high-density interconnect solutions for various electronic applications. The 306-036-420-103 variant specifically addresses needs for 36-position connections with standardized dimensional profiles compatible with industry-standard PCB layouts.
