306-036-420-107

Overview

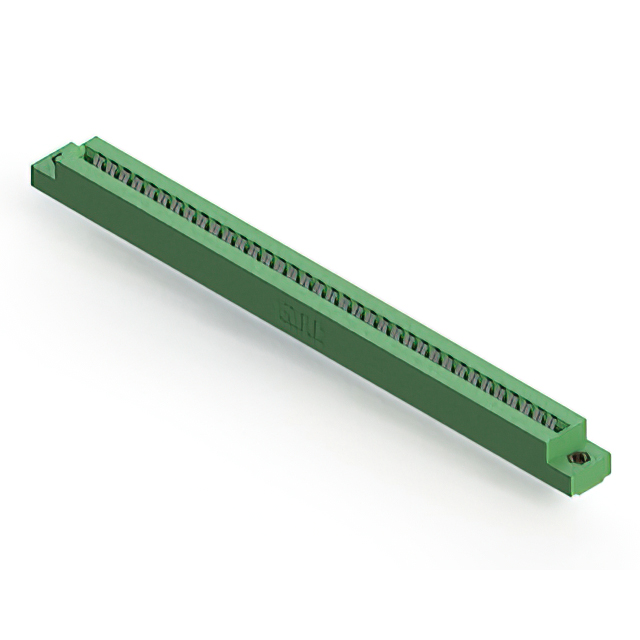

The EDAC Inc. 306-036-420-107 is a standard card edge connector receptacle featuring 36 positions in a single row with a 3.96 mm (0.156 inch) contact spacing. Designed for vertical panel mount installation, it accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission. The insulator body is made of thermoplastic polyester, providing structural integrity and electrical insulation.

Feature Summary

• Vertical panel mount configuration for secure board retention
• Gold-plated copper alloy contacts for corrosion resistance
• Single centerline row design accommodating standard PCB thickness

Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules

Procurement Notes

Verify the specific ordering suffix to confirm flange features and mounting hardware compatibility. Ensure the target application supports the required 3.96 mm pitch and 1.57 mm board thickness. Confirm that the operating temperature range aligns with environmental conditions. Cross-reference the manufacturer part number against official distributor catalogs to avoid counterfeit components.

Selection Notes

Select this component when a low-profile, high-reliability connection is needed for 36-signal interfaces. The vertical orientation simplifies panel integration compared to right-angle alternatives. Consider the thermal stability of the polyester insulator for environments exceeding standard room temperatures. Evaluate the mechanical strength provided by the flush mount flange design for vibration-prone applications.

Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic assembly needs. The 306-036-420-107 specifically addresses requirements for medium-density connections with standardized dimensional tolerances.

Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different flange configurations. Verify that alternative models maintain the same current rating and voltage specifications. Check for compatibility with existing panel cutouts and mounting hole patterns before switching.
