Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

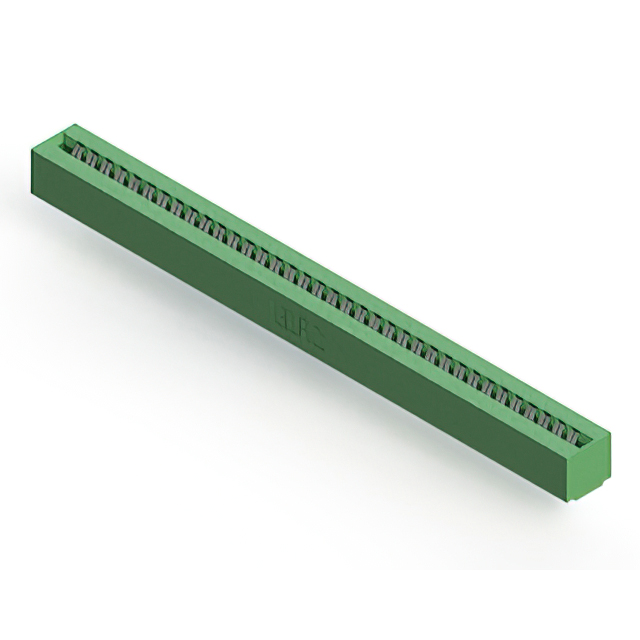

The EDAC Inc. 306-036-421-101 is a standard card edge connector receptacle featuring 36 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and a thermoplastic housing, rated for 5 A current at 1.57 mm board thickness. Designed for vertical panel mount installation via solder pin termination, this component belongs to the EDAC 306 series.
Feature Summary
- Vertical panel mount configuration for secure structural integration
- Gold-plated contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides electrical insulation
Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument interfaces
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm contact plating, housing material, and termination style match project requirements. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the 3.96 mm pitch aligns with the mating card edge design before procurement.
Selection Notes
Select this component when a vertical, panel-mount solution is required for high-reliability applications. The 36-position layout suits moderate-density signal routing. Confirm that the 5 A rating meets circuit load demands and that the solder pin termination method is compatible with the assembly process.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles, providing modular connectivity options for diverse electronic assemblies requiring robust mechanical and electrical performance.
Replacement Considerations
Consult official EDAC substitution guides for verified equivalents. Cross-reference pitch, position count, and mounting orientation to ensure functional compatibility without redesigning the host PCB or chassis.
FAQ
What is the maximum operating temperature range?
Specific thermal limits are not provided in the available public data; consult the official datasheet for precise environmental ratings.
Is this connector single-sided or double-sided?
The product description identifies it as a dual female connector, indicating compatibility with double-sided card edge designs.
