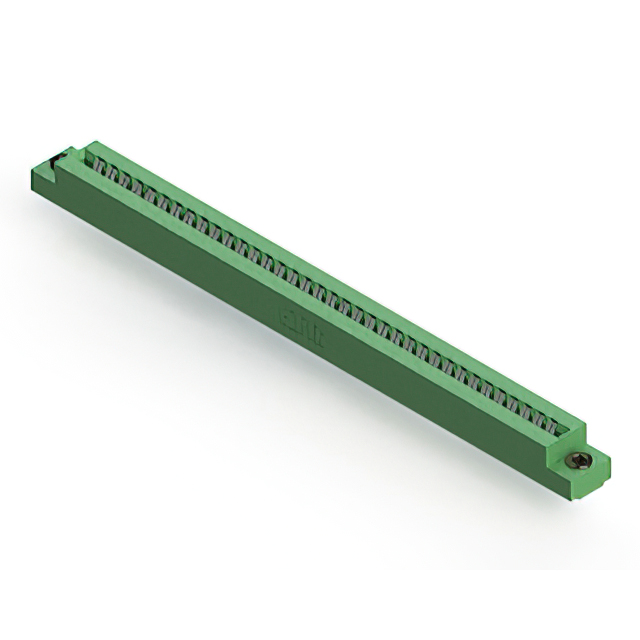

306-036-421-103

$17.60

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:e50b60bcdb89 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：36
Number of Positions：72
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-036-421-103

Overview

The EDAC Inc. 306-036-421-103 is a dual female card edge connector designed for panel mount applications. It features 72 positions with a contact spacing of 0.156 inches (3.96 mm). The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are constructed from copper alloy and gold plated to ensure reliable signal transmission. The insulator body is made of thermoplastic material, providing structural integrity and electrical insulation.

Feature Summary

Dual female configuration supporting two-sided board insertion
Gold-plated copper alloy contacts for corrosion resistance
Thermoplastic housing for stable mechanical performance

Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation modules

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count and termination style. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm that the panel mount mounting style aligns with the assembly design requirements before finalizing procurement orders.

Selection Notes

Select this component when a high-density dual-sided connection is required within standard D-sub form factors. Evaluate the 0.156-inch pitch against available routing space on the mating card. Consider the operating temperature range and environmental sealing needs relative to the application environment.

Part Context

This part belongs to the EDAC 306 series of edgeboard connectors. The series offers various row configurations and termination options. It serves as a standard solution for connecting double-sided PCBs in compact electronic assemblies where space efficiency and reliable connectivity are prioritized.

Replacement Considerations

Check for direct substitutes within the same EDAC 306 family that may offer different row counts or termination types. Verify dimensional compatibility with existing panel cutouts and mating card guides before substituting.
