306-036-421-168

Overview

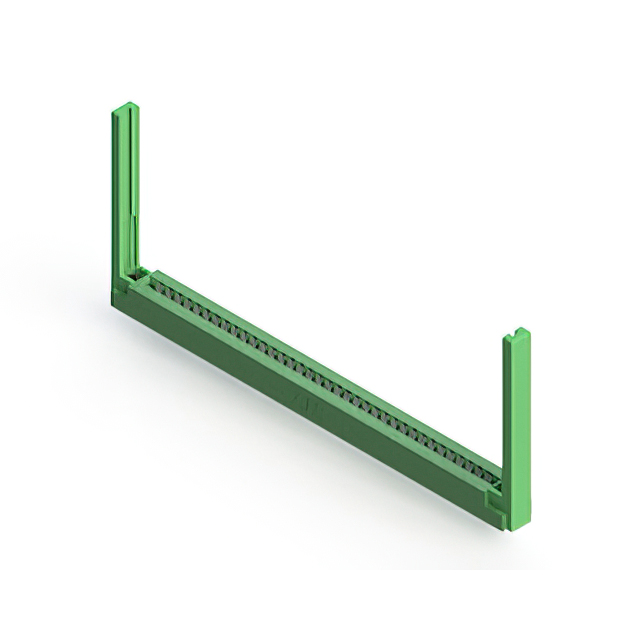

The EDAC Inc. part number 306-036-421-168 is a standard card edge connector designed for dual female termination. It features 72 positions arranged in a dual-row configuration with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes a panel mount installation style and is constructed with a thermoplastic insulator. The contacts are made from copper alloy and feature gold plating to ensure reliable signal transmission. This component supports a maximum operating temperature of +105°C and a minimum operating temperature of -40°C, providing robust performance across various industrial environments.

Feature Summary

• Dual female contact configuration for secure board insertion
• Panel mount design for stable structural integration
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic insulation housing for durability

Applications

• Industrial control systems requiring high-density connections
• Communication equipment interface modules
• Medical device internal circuit boards
• Energy management system hardware

Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact pin count, row configuration, and mounting variations. Ensure that the selected variant matches the required PCB thickness and mating card specifications. Cross-reference the RoHS compliance status and lead time requirements with authorized distributors prior to ordering to align with production schedules.

Selection Notes

Select this connector when a dual-row, 72-position card edge interface is required for panel-mounted applications. Consider the 0.156-inch pitch and thermoplastic construction for compatibility with standard industrial PCBs. Evaluate the thermal rating of +105°C to ensure suitability for the intended operational environment. Confirm that the gold-plated contacts meet the electrical reliability standards of the target system.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors, which are engineered for general-purpose electronic interconnections. The series offers various position counts and mounting options to accommodate diverse design needs. As a product of EDAC Inc., it reflects the manufacturer's focus on quality and service in the connector industry, supporting applications across communication, consumer electronics, medical, and energy sectors.

Replacement Considerations

Check for alternative part numbers within the EDAC 306 series that may offer different row configurations or mounting styles. Verify compatibility with existing PCB layouts and mating cards before substituting. Consult official EDAC documentation for any updated versions or superseded parts to ensure continued availability and specification alignment.
