306-036-500-101

Overview

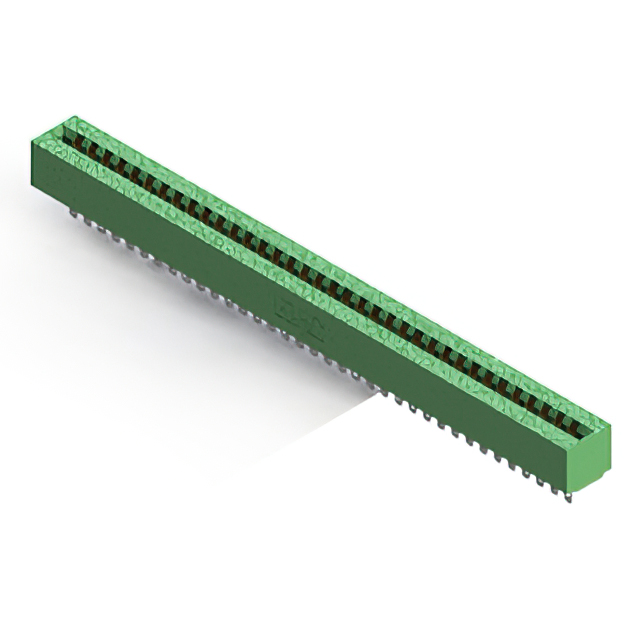

The EDAC Inc. 306-036-500-101 is a dual female card edge connector featuring 72 positions with a 0.156-inch (3.96mm) pitch. It utilizes gold-plated copper alloy contacts and a green DAP insulator body. Designed for free-hanging in-line mounting via solder eyelets, it accepts printed circuit boards with a nominal thickness of 0.062 inches. The component supports an operating temperature range from -40°C to +125°C.

Feature Summary

• Dual edge configuration with single centerline row
• Low profile insulator body design
• Gold-plated copper alloy contact material
• Solder eyelet termination method

Applications

• Computing and storage systems
• Medical equipment interfaces
• Aerospace instrumentation
• Industrial control modules

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct pin count, spacing, and termination style. Confirm that the required board thickness matches the 0.062-inch specification. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure the selected variant meets the intended current rating requirements for the application.

Selection Notes

Select this connector when a dual-edge interface with a 0.156-inch pitch is required for standard thickness PCBs. The low-profile design suits applications with strict height constraints. Verify compatibility with the target board's edge guide holes and mounting hardware. Consider the through-hole solder eyelet termination for reliable mechanical attachment during wave or selective soldering processes.

Part Context

This component belongs to the EDAC 306 series of card edge connectors. The series offers various position counts and spacing options. EDAC provides extensive interconnect solutions for rack and panel applications. The company focuses on high-reliability products for global distribution channels and OEMs across multiple technology sectors.

Replacement Considerations

Consult official EDAC substitution guides for direct replacements. Verify that any alternative part maintains identical pitch, position count, and termination type. Ensure mechanical dimensions and mounting styles are compatible with existing PCB layouts. Cross-reference specifications to confirm equivalent electrical ratings and environmental performance.
