Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

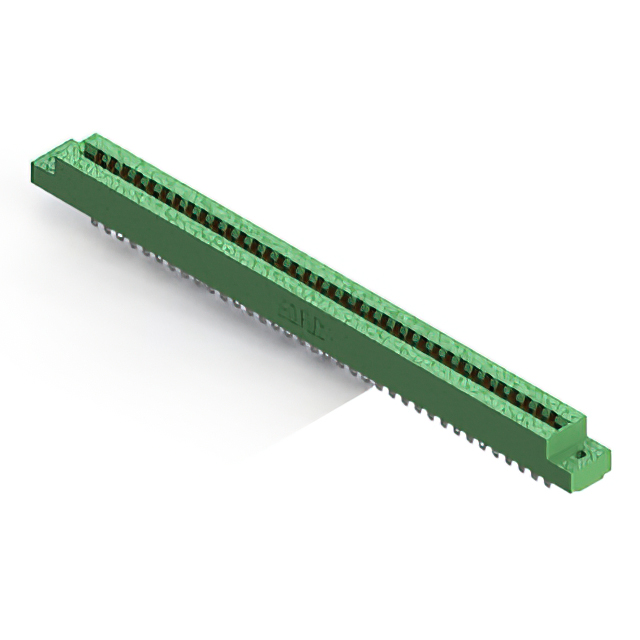

The EDAC Inc. 306-036-500-102 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features a dual female configuration with 72 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts housed in a green thermoplastic insulator. It supports a PCB thickness of 1.57 mm and offers an insulation resistance of 5 Gohms.
Feature Summary
- Dual female contact configuration for secure board retention
- Gold-plated copper alloy contacts for reliable conductivity
- Vertical panel mount design for structured integration
Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument modules
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required PCB thickness and mounting style. Confirm that the dual-edge female configuration matches the target circuit board design. Check RoHS compliance status against current regulatory requirements for the intended market. Ensure the vertical panel mount orientation aligns with the mechanical assembly constraints.
Selection Notes
Select this component when a high-density connection with 72 positions is required for double-sided card edge boards. The 0.156-inch pitch provides robust spacing for industrial environments. Consider the thermoplastic housing material for durability. Verify that the 5 A current rating meets the electrical load requirements of the application circuitry.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in panel mount configurations and availability in various position counts. The 306 series is widely used in applications requiring reliable signal transmission between circuit boards and chassis-mounted headers.
Replacement Considerations
Cross-reference with other EDAC 306 series variants for different position counts or mounting styles. Verify pin-to-pin compatibility before substituting with connectors from other manufacturers. Ensure that any alternative part maintains the same 0.156-inch pitch and dual female contact type.
