306-036-500-104

Overview

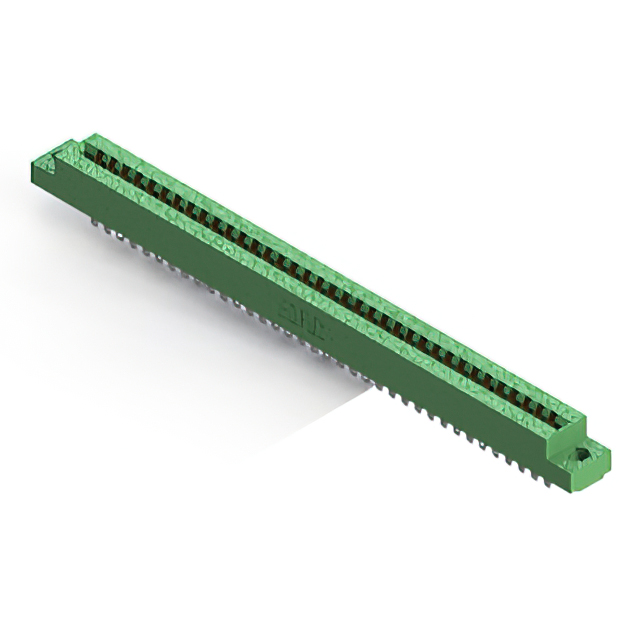

The EDAC Inc. 306-036-500-104 is a dual female card edge connector with 72 positions arranged in two rows of 36 contacts each. It features a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). The connector utilizes copper alloy cantilever contacts with a gold plating finish for reliable signal transmission. Designed for panel mounting, it employs solder lug termination methods and includes flange features for secure installation.

Feature Summary

• Dual row configuration providing 72 total contact positions for high-density interconnect applications
• Cantilever contact design ensures reliable mating with specified board thickness ranges
• Gold-plated copper alloy terminals offer corrosion resistance and stable electrical performance
• Panel mount construction with integrated flanges facilitates secure mechanical attachment

Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard board thicknesses
• Test and measurement instrumentation needing reliable signal connections
• Computing hardware modules requiring dual-row connectivity

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official catalog to ensure compatibility with required termination styles and mounting configurations. Confirm that the target application supports the specified board thickness range of 0.054 to 0.070 inches. Check RoHS compliance status if environmental regulations apply to the end product assembly process.

Selection Notes

Select this component when a dual-row interface with 0.156-inch spacing is required for boards within the 1.37mm to 1.78mm thickness tolerance. Ensure the design accommodates panel mounting constraints and solder lug termination requirements. Validate that the operating temperature range of -40°C to 105°C meets the environmental conditions of the intended deployment scenario.

Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and termination options to support diverse electronic assembly needs. Components in this family are engineered for durability and consistent electrical performance across industrial and commercial sectors.

Replacement Considerations

Cross-reference with other EDAC 306 series variants such as 306-009-500-104 for different position counts. Verify mechanical dimensions and pinout compatibility before substituting with connectors from other manufacturers offering similar specifications.
