306-036-500-107

Overview

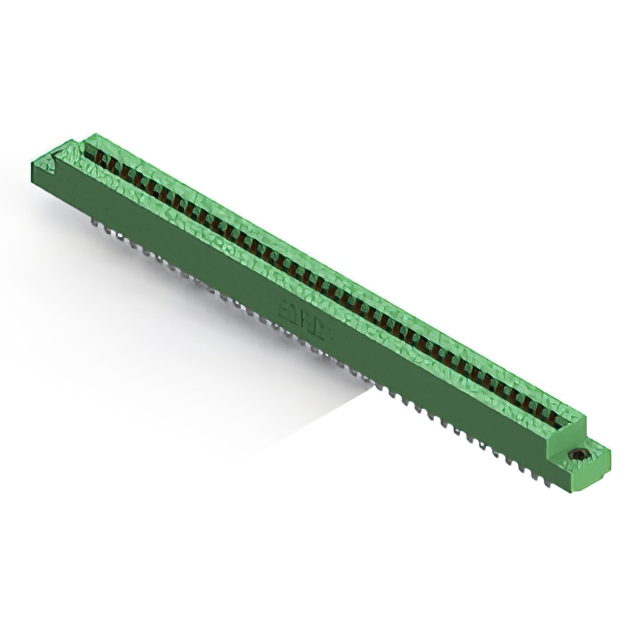

The EDAC Inc. 306-036-500-107 is a standard card edge connector from the 306 series, designed for panel mounting applications. It features a dual female configuration with 72 total positions arranged in two rows of 36. The connector utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts that are gold-plated, it ensures reliable electrical performance. The housing is made of thermoplastic material, providing structural integrity for vertical installation.

Feature Summary

• Dual row female contact configuration for high-density interconnection
• Gold-plated copper alloy contacts for corrosion resistance
• Panel mount design with vertical orientation
• Compatible with 0.062 inch nominal thickness PCBs

Applications

• Industrial control systems requiring robust panel-mounted connections
• Test and measurement equipment interfaces
• Communication hardware backplanes
• Automated manufacturing machinery control panels

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required board thickness and mounting style. Confirm that the dual-row configuration matches the target PCB layout. Check RoHS compliance status if environmental regulations apply to the end product. Ensure the gold plating specification meets the intended current carrying requirements. Validate the panel cutout dimensions against the mechanical drawing provided by the manufacturer.

Selection Notes

Select this component when a high-pin-count, dual-sided connection is necessary for thick PCBs. The 3.96 mm pitch offers a balance between density and manufacturability. Consider the thermoplastic housing durability for industrial environments. Evaluate the need for vertical panel mounting versus other styles. Ensure the 72-position count aligns with the signal routing requirements of the design.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in handling various board thicknesses and its robust construction for demanding applications. The 306-036-500-107 specifically addresses needs for higher pin counts compared to single-row variants, offering a compact solution for complex circuit interfaces within the same form factor family.

Replacement Considerations

Direct substitutes may include other EDAC 306 series parts with different position counts but identical pitch and mounting style. Cross-reference with 306-033-521-107 or 306-025-521-107 if fewer positions are acceptable. Verify that any alternative maintains the 0.156 inch spacing and dual female contact type to ensure mechanical and electrical compatibility.
