Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

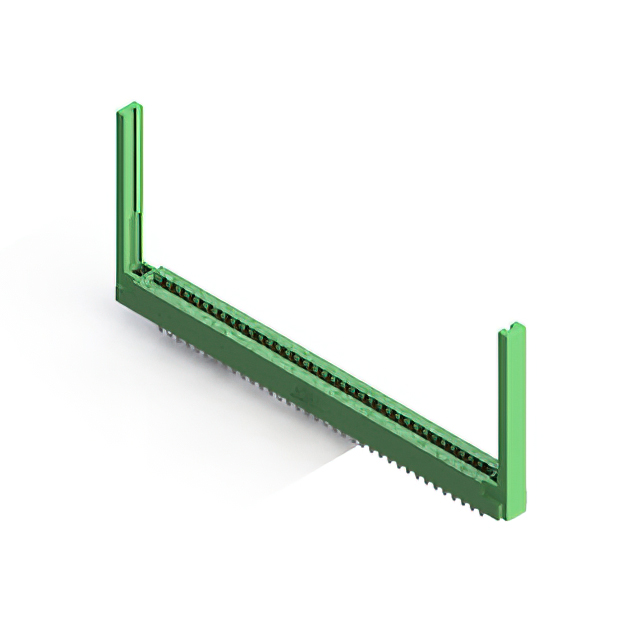

The EDAC Inc. 306-036-500-168 is a dual female card edge connector featuring 72 positions arranged in two rows with a 0.156-inch (3.96mm) contact spacing. Designed for panel installation via solder cup termination, it utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. The component supports printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.
Feature Summary
- Dual female configuration with 72 total positions across two rows
- Gold-plated copper alloy contacts for reliable signal transmission
- Thermoplastic polyester insulator body for thermal stability
- Panel mount design with solder cup termination method
Applications
- High-density electronic module interconnections
- Industrial control system backplanes
- Communication equipment signal routing
- Medical device internal board connections
Procurement Notes
Verify the specific pin count and row configuration against the target PCB footprint before ordering. Confirm that the operating environment temperature remains within the specified -40°C to 105°C range. Ensure the host board thickness falls between 0.054 and 0.070 inches to guarantee proper mechanical engagement and electrical contact integrity during assembly.
Selection Notes
Select this model when a high-pin-count interface with 0.156-inch spacing is required for panel-mounted applications. It is suitable for designs needing robust thermal performance up to 105°C. Consider the dual-row layout for maximizing connection density in constrained spaces while maintaining standard card edge compatibility.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its use of thermoplastic polyester materials and versatile mounting options. It serves as a critical interconnect solution for various industrial and commercial electronics requiring durable and stable board-to-board or board-to-panel connections.
Replacement Considerations
Cross-reference with other EDAC 306 series variants such as 306-009-500-104 or 306-032-500-168 if different pin counts are needed. Verify that any substitute maintains the same 0.156-inch pitch and dual female configuration to ensure mechanical and electrical compatibility with existing designs.
