306-036-520-102

Overview

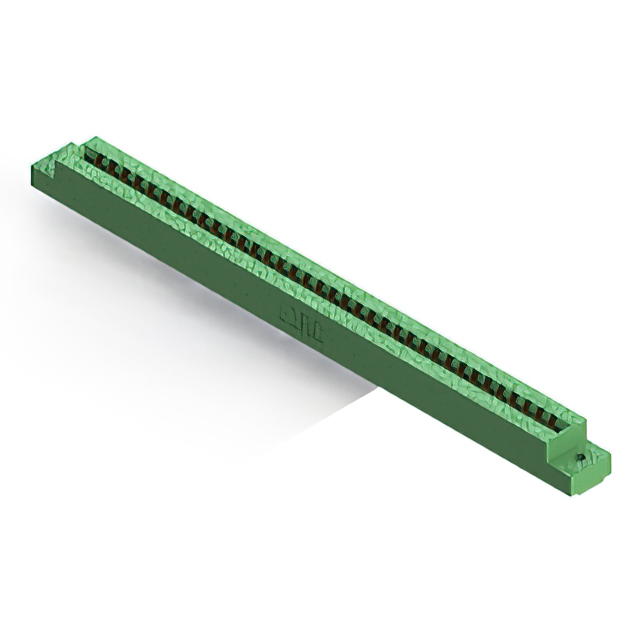

The EDAC Inc. 306-036-520-102 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features a dual-edge female configuration with 72 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and is housed in a green thermoplastic insulator body. Rated for 5 A current, it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). This component provides a robust interconnection solution for high-density electronic assemblies requiring secure board retention.

Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Vertical panel mounting style for stable installation
• Thermoplastic insulator housing with green coloration

Applications

• Medical interconnect solutions such as ventilators
• Ambulance medical equipment systems
• CPAP machine internal connections
• General purpose panel-mounted electronics

Procurement Notes

Verify the specific ordering suffix to confirm the exact pin count and termination type, as variations exist within the 306 series. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the vertical panel mount orientation aligns with the mechanical design constraints of the enclosure. Check for any specific environmental ratings if operating in extreme conditions beyond standard specifications.

Selection Notes

Select this model when a high-pin-count dual-edge interface is required for panel-mounted applications. The 72-position layout supports complex signal routing needs. The 3.96 mm pitch offers a balance between density and manufacturability. Consider the gold plating for environments where corrosion resistance is critical. Verify that the thermoplastic housing material meets the thermal requirements of the application.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors, which are widely used in industrial and medical electronics. The series offers various position counts and mounting options to accommodate different board sizes and system architectures. The 306-036-520-102 specifically addresses the need for high-density connections in space-constrained panel installations.

Replacement Considerations

Compatible substitutes include other EDAC 306 series connectors with matching 72 positions and 3.96 mm pitch, such as the 306-036-500-102 variant. Ensure that any replacement maintains the same dual-edge female configuration and vertical mounting orientation to preserve mechanical fit.
