Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

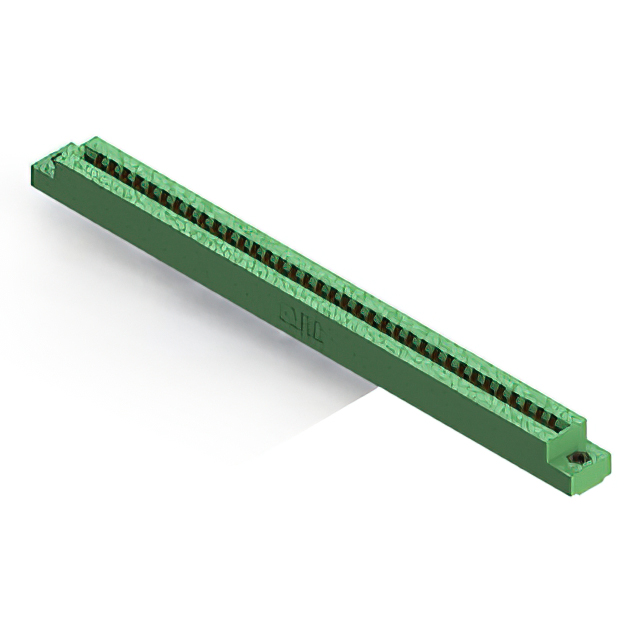

The EDAC Inc. 306-036-520-107 is a standard card edge connector featuring 36 positions in a single row with a 0.156-inch (3.96mm) contact spacing. Designed for dual-edge card insertion, it utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body. The component supports printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). It offers panel mount installation and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Accepts .062" (1.57mm) nominal thickness P.C. board
- Low profile insulator body design
- Single centreline row configuration
Applications
- Standard card edge interconnection systems
- Industrial control panels requiring panel mount headers
- Electronic modules utilizing 0.062 inch thick PCBs
Procurement Notes
Verify the specific suffix code against the manufacturer datasheet to confirm exact plating thickness and termination style. Ensure the required PCB thickness matches the 0.062-inch specification for proper contact engagement. Confirm that the single-row configuration aligns with the target circuit board layout before procurement.
Selection Notes
Select this model when a low-profile, single-row connector is required for 0.062-inch thick cards. The 0.156-inch pitch suits applications needing moderate density without excessive height. Verify that the panel mount style fits the enclosure constraints compared to through-hole alternatives.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting options. The 306-036 variant specifically addresses needs for 36-position interfaces in industrial and commercial electronics where reliable dual-edge connection is necessary.
Replacement Considerations
Check EDAC part numbers within the same 306 series for alternative position counts or mounting styles. Verify compatibility with existing PCB footprints if substituting with similar single-row card edge connectors from other manufacturers.
