Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

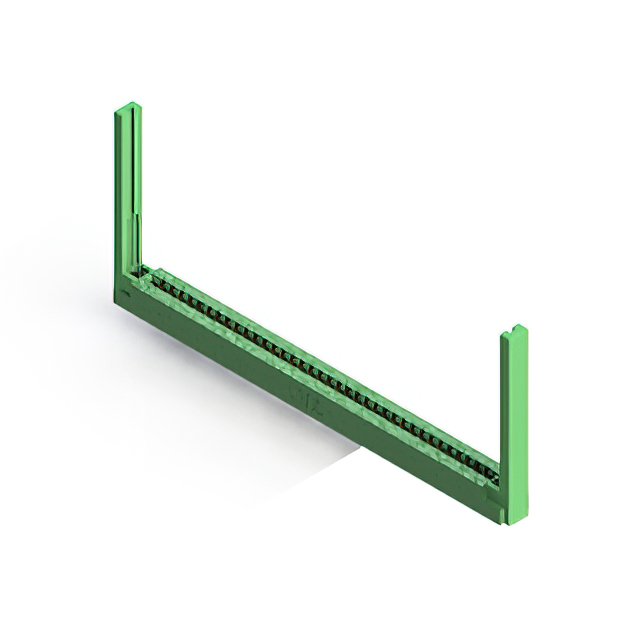

The EDAC Inc. part number 306-036-520-168 is a standard card edge connector designed for panel mounting applications. It features a single row of contacts with a pitch of 3.96 mm (0.156 inches) and provides 36 positions. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm. Contacts are constructed from copper alloy and plated with gold to ensure reliable signal transmission. The housing utilizes thermoplastic material, supporting an operating temperature range from -40°C to +105°C.
Feature Summary
- Single centerline row configuration with .156 inch contact spacing
- Accepts .062 inch nominal thickness printed circuit boards
- Low profile insulator body construction
Applications
- Panel mounted electronic interconnections
- Card edge board interface systems
- Industrial control hardware connections
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating specifications, and termination style. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the single-row configuration meets the design requirements for the intended application environment.
Selection Notes
Select this component when a vertical panel mount solution is required for single-sided card edge interfaces. The 36-position capacity suits moderate density applications. Verify that the thermoplastic housing and copper alloy contacts align with the environmental and electrical demands of the system design.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. This specific model focuses on single-row connectivity with standardized spacing, providing a robust mechanical connection for vertical panel installations in electronic assemblies.
Replacement Considerations
Consult official EDAC cross-reference guides for verified substitute part numbers. Ensure any replacement maintains the 3.96 mm pitch, 36-position count, and panel mounting orientation to preserve mechanical fit and electrical continuity.
