Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

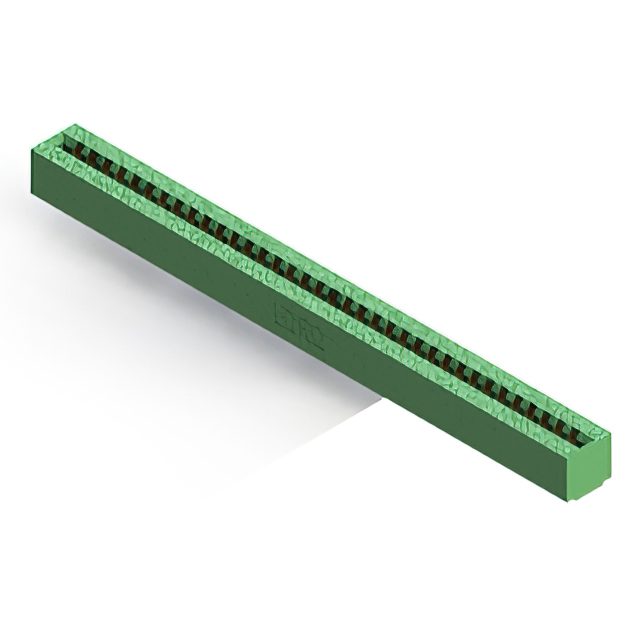

The EDAC Inc. 306-036-521-101 is a standard card edge connector designed for dual-edge board insertion. It features 36 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, and the insulator body is green DAP material. It supports through-hole solder termination and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual-edge female connector configuration for secure board retention
- Gold-plated contacts ensure reliable electrical performance
- Low-profile insulator body design for space-constrained applications
- Through-hole solder termination for robust PCB mounting
Applications
- Industrial control systems requiring high-reliability interconnects
- Telecommunications equipment with standard card edge modules
- Test and measurement instrumentation boards
- Automotive electronics assemblies
Procurement Notes
Verify that the target application requires a dual-edge connector rather than single-edge variants. Confirm the PCB thickness matches the 0.062-inch specification to ensure proper contact engagement. Check RoHS compliance requirements against project specifications. Ensure the operating temperature range aligns with environmental conditions. Validate pin count and row configuration before ordering.
Selection Notes
Select this component when a dual-edge connection is necessary for mechanical stability. The 0.156-inch pitch suits standard industrial board layouts. Consider the low-profile body if vertical space is limited. Gold plating is preferred for corrosion resistance in harsh environments. Verify compatibility with mating card edge thicknesses prior to integration.
Part Context
This part belongs to EDAC's 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306 series is widely used in industrial and commercial applications. It provides a balance of cost-effectiveness and reliability. The specific model number indicates position count and physical characteristics.
Replacement Considerations
Compatible substitutes include EDAC 306-036-521-168 and 306-036-520-158. These alternatives share similar form factors and electrical ratings. Verify dimensional compatibility before substitution. Ensure mating board specifications match the replacement part. Cross-reference datasheets for any minor feature differences.
