Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 72POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36
- Number of Positions：72
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

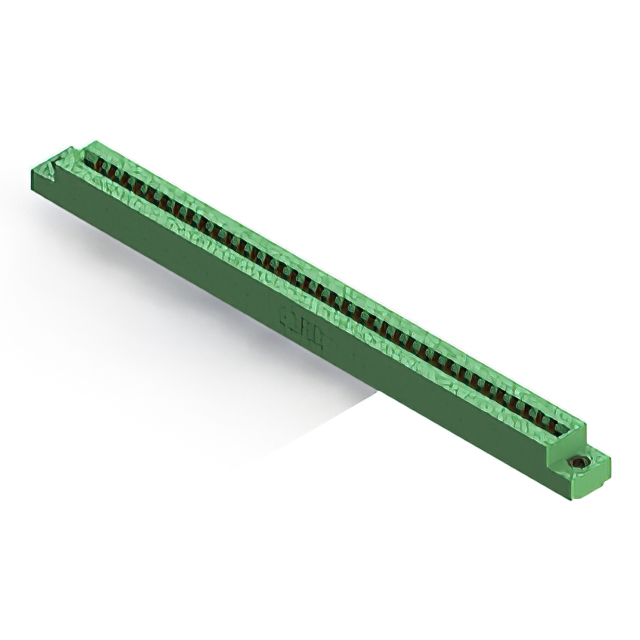

The EDAC Inc. 306-036-521-107 is a standard card edge connector from the 306 series, designed for panel mount vertical installation. It features a single row with 36 positions and a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are gold-plated copper alloy, rated for 5 A current at temperatures ranging from -40°C to +105°C. Insulation resistance is specified at 5 GOhms, and the housing is constructed from thermoplastic material.
Feature Summary
- Single centerline row configuration accepting .062 inch nominal PCB thickness
- Low profile insulator body construction
- Gold-plated copper alloy contacts for reliable signal transmission
Applications
- Panel-mounted electronic interconnects
- Vertical card edge mating applications
- Industrial control system backplanes
Procurement Notes
Verify the specific suffix code against the manufacturer datasheet to confirm exact plating thickness and termination style. Ensure the ordering part number matches the required position count and row configuration. Cross-reference RoHS compliance status directly with official documentation before procurement to meet regulatory requirements.
Selection Notes
Select this component when a single-row, vertical card edge interface is required for panels. Confirm that the target PCB thickness aligns with the 1.57 mm specification. Evaluate the 3.96 mm pitch against available board layout constraints. Verify thermal ratings suit the operational environment limits.
Part Context
This part belongs to the EDAC 306 series, characterized by .156 inch contact spacing. The series offers various mounting options and termination styles. This specific model represents a standard female connector variant within the lineup, focusing on basic vertical panel integration without specialized high-temperature or dual-edge features found in other series members.
Replacement Considerations
Consult the official EDAC cross-reference guide for verified substitutes. Alternative parts must match the 36-position count, 3.96 mm pitch, and single-row vertical form factor. Ensure mechanical compatibility with existing panel cutouts and PCB thickness tolerances.
