306-037-400-108

$17.92

Description：CONN EDGE DUAL FMALE 74POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:2f94c74ebb7c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 74POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：37
Number of Positions：74
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-037-400-108

Overview

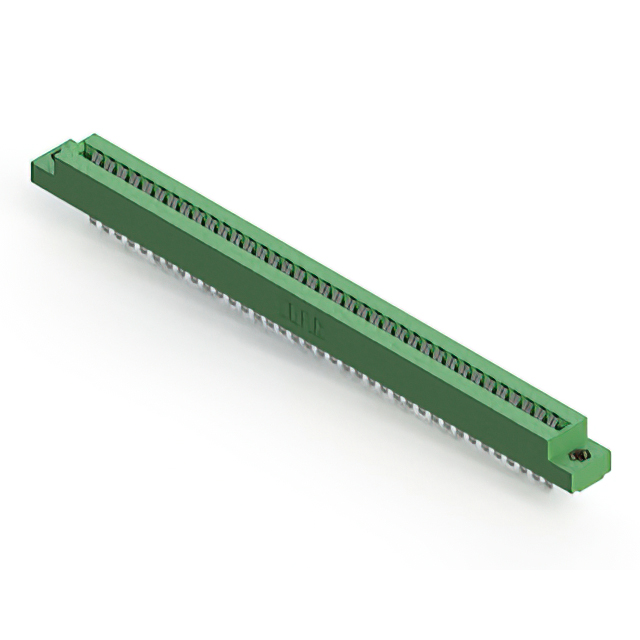

The EDAC Inc. 306-037-400-108 is a dual-edge female card edge connector designed for panel mount applications. It features 74 positions with a 0.156-inch (3.96mm) spacing across two rows. The contacts are made of copper alloy with a tin finish, providing reliable electrical connection. The connector supports PCB thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C.

Feature Summary

Dual-edge female configuration for non-specified board types
Tin-plated copper alloy contacts for durability
Panel mount installation style with green thermoplastic insulation

Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation boards

Procurement Notes

Verify the specific contact plating material, as some sources indicate tin while others may imply gold for similar series parts. Confirm the exact package quantity and ensure the supplier provides official EDAC documentation matching the 306-037 base number. Check RoHS compliance status directly with the manufacturer or authorized distributor before finalizing procurement orders.

Selection Notes

Select this component when a high-density dual-edge interface is required for panel-mounted assemblies. Ensure the target PCB thickness falls within the 0.054 to 0.070 inch specification. Consider the operating temperature range and contact material compatibility with mating fingers to guarantee long-term reliability in the intended environment.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. It shares the 306-037 base product number with other variants differing in position count or plating. The series is known for supporting various mounting styles and contact configurations for general-purpose electronic interconnect needs.

Replacement Considerations

Direct substitutes include other EDAC 306-037 variants with matching pin counts and spacing. Verify that alternative parts maintain the same dual-edge female configuration and panel mount requirements to ensure mechanical fit.
