Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 78POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：39
- Number of Positions：78
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

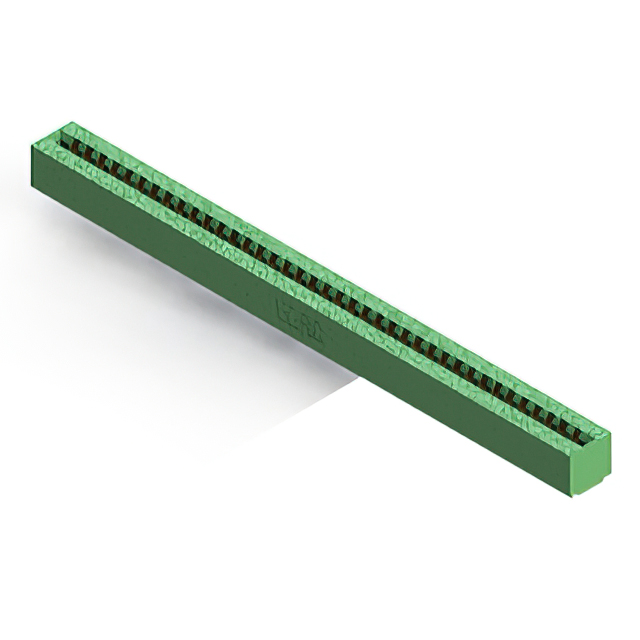

The EDAC Inc. 306-039-520-101 is a standard card edge connector featuring 78 positions with a 0.156 inch (3.96 mm) pitch. It utilizes a dual female contact configuration and gold plating for reliable signal transmission. The unit supports a current rating of 5 A and includes an insulation resistance specification of 5 Gohms. Designed for panel mounting in a vertical orientation, the housing is constructed from thermoplastic material, while contacts are made from copper alloy.
Feature Summary
- Dual edge female contact design for secure board interface
- Gold-plated copper alloy contacts ensure corrosion resistance
- Thermoplastic housing provides structural stability
Applications
- Panel-mounted electronic assemblies requiring high-density connections
- Industrial control systems utilizing card edge interfaces
- Vertical interconnect applications in modular hardware designs
Procurement Notes
Verify the specific ordering suffix to confirm pin count, contact plating thickness, and housing color variations. Ensure compatibility with the target PCB card thickness and panel cutout dimensions before procurement. Confirm that the 5 A current rating aligns with the system's electrical requirements. Cross-reference the datasheet for precise mechanical drawings to validate mounting hole patterns and overall envelope dimensions.
Selection Notes
Select this component when a 78-position dual-edge interface is required for vertical panel mounting. The 3.96 mm pitch accommodates specific board trace spacing needs. Verify that the thermoplastic housing material meets environmental standards for the intended operating temperature range. Ensure the gold contact plating satisfies long-term reliability requirements for the application environment.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and pitch options to support diverse electronic interconnection needs. The 306-039-520-101 specifically addresses applications requiring a 78-position dual-edge configuration with robust thermalplastic construction and gold-plated contacts for durable performance.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical specifications against alternative suppliers if sourcing constraints exist.
