306-039-521-102

$16.88

Description：CONN EDGE DUAL FMALE 78POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:0a8b4f34af1e Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 78POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：39
Number of Positions：78
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-039-521-102

Overview

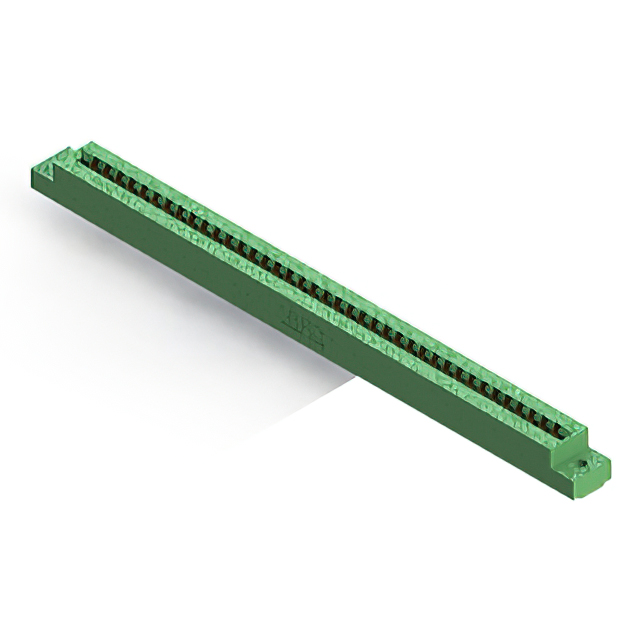

The EDAC Inc. 306-039-521-102 is a standard card edge connector from the 306 series, designed for vertical panel mounting. It features 78 positions with a 0.156-inch (3.96 mm) contact spacing and accepts dual-edge PCBs with a nominal thickness of 0.062 inches (1.57 mm). The contacts are made of copper alloy with gold plating, rated for 5 A current. The insulator body is thermoplastic polyester, colored green, and includes flange holes with a 0.128-inch diameter for secure installation.

Feature Summary

Accepts nominal 0.062 inch thick printed circuit boards
Low profile insulator body design
Gold plated copper alloy contacts for reliable connection

Applications

Vertical panel mounted electronic assemblies
Dual-edge card edge interconnections
Industrial control system interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, plating thickness, and flange specifications. Ensure the target application requires the 3.96 mm pitch and 1.57 mm board thickness compatibility. Confirm RoHS compliance status if required by project regulations before finalizing procurement orders.

Selection Notes

Select this component when a vertical panel mount solution with 78 positions is required. The 3.96 mm spacing accommodates specific high-density routing needs. Verify that the host PCB thickness falls within the specified range for proper contact engagement. Consider the green thermoplastic housing material for environmental resistance in the intended operating conditions.

Part Context

This part belongs to the EDAC 306 series of card edge connectors. The series is characterized by its low-profile design and robust mechanical construction suitable for panel mounting applications. The 306 series offers various position counts and spacing options to support diverse electronic interconnection requirements across industrial and commercial sectors.

Replacement Considerations

Cross-reference with other EDAC 306 series variants for alternative position counts or spacing. Verify mechanical footprint compatibility before substituting with generic equivalents. Ensure electrical ratings match the original design specifications.
