307-008-453-102

Edgeboard Connectors Overview

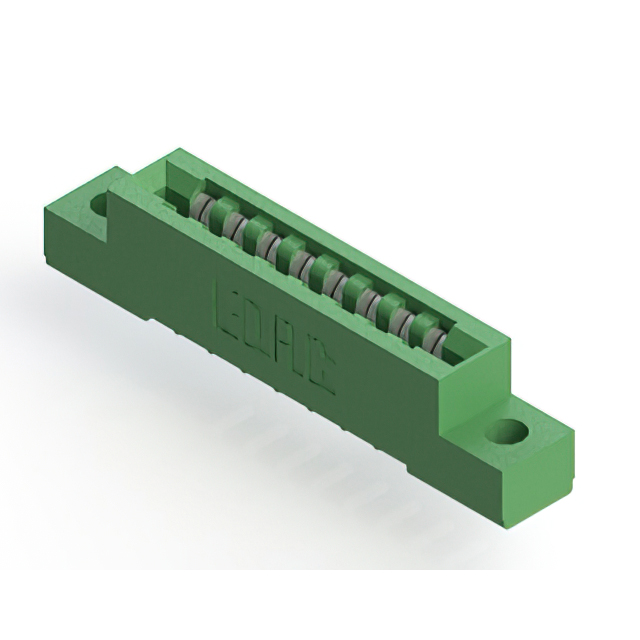

The EDAC Inc. 307-008-453-102 is a standard card edge connector from the 307 Series, designed for dual female contact configurations with 16 positions. It features a 0.156-inch (3.96 mm) pitch and accommodates board thicknesses of 0.054 to 0.070 inches. The connector utilizes tin-plated copper alloy contacts and green thermoplastic polyester insulation. Rated for 5 A current, it supports panel mount installation at right angles with solder pin termination.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure mating
• Panel mount installation with right-angle orientation
• Tin-plated copper alloy contacts for reliable conductivity
• Green thermoplastic polyester housing material

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 307 Series Ordering Guide to ensure correct contact plating and housing color specifications. Confirm that the required board thickness falls within the specified 0.054 to 0.070 inch range for proper mechanical engagement. Cross-reference the terminal type to confirm solder pin compatibility with your assembly process.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is required for high-density signal routing in panel-mounted applications. Ensure the design accommodates the 0.156-inch pitch constraint and verify that the thermal environment remains within the -40°C to +105°C operating range. Consider the tin plating option if gold plating is not strictly necessary for corrosion resistance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series, a line of standard card edge connectors known for their versatility in various electronic assemblies. The series offers multiple position counts and mounting styles, allowing engineers to scale designs while maintaining consistent mechanical interfaces across different product lines.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 307 Series cross-reference guide for direct substitutes. Verify that any alternative maintains the 16-position count, 3.96 mm pitch, and dual female contact type to ensure mechanical and electrical compatibility.
