307-009-547-104

Edgeboard Connectors Overview

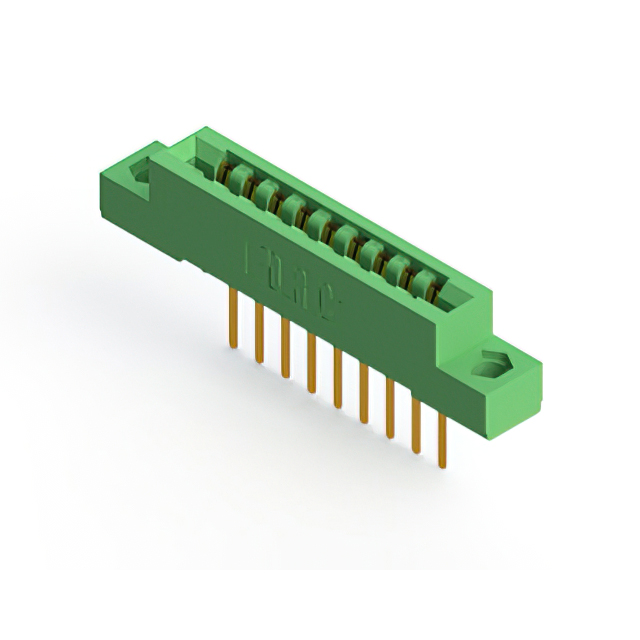

The EDAC 307-009-547-104 is a standard card edge connector from the 307 series, designed for reliable signal transmission in electronic assemblies. It features a single row with nine positions and a contact spacing of 3.96 mm. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm. It utilizes gold-plated copper alloy contacts to ensure low resistance and durability. The unit is rated for 5 A current and offers an insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide corrosion resistance and stable electrical performance.
• Thermoplastic housing ensures mechanical stability and high insulation resistance.
• Accepts 1.57 mm thick PCBs for secure board retention.

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Computer peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify the specific pin count and mounting style against the schematic before ordering. Confirm that the target PCB thickness matches the 1.57 mm specification to ensure proper engagement. Check RoHS compliance requirements if operating in regulated environments. Ensure the supplier provides official datasheets for final technical validation.

Edgeboard Connectors Selection Notes

Select this component when a single-row connection with 3.96 mm pitch is required. It is suitable for applications needing robust thermal performance up to 105°C. Consider the panel mount orientation if space constraints dictate a right-angle configuration. Compare against other 307 series variants if different position counts are needed.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of card edge connectors. The series is characterized by a 3.96 mm contact spacing and compatibility with 1.57 mm thick boards. Other models in the series vary primarily in the number of positions and specific mounting configurations while maintaining consistent electrical ratings.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and board thickness but different position counts, such as 307-012-556-204 or 307-010-547-158. Verify that any replacement maintains the 5 A current rating and 1.57 mm board thickness tolerance.
