307-009-547-158

Edgeboard Connectors Overview

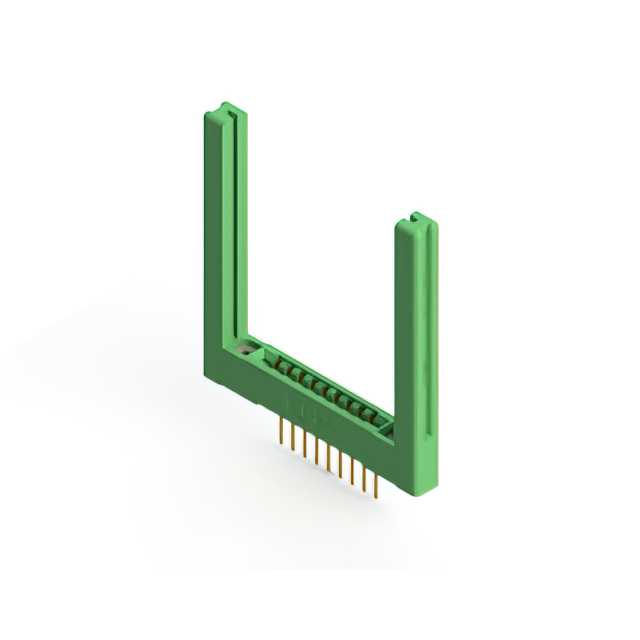

The EDAC 307-009-547-158 is a standard card edge connector from the 307 series, designed for single-edge board applications. It features 9 positions with a 3.96 mm (0.156 inch) contact spacing and a 5.08 mm row spacing. The connector utilizes wire wrap terminals with gold-plated copper alloy contacts to ensure reliable signal transmission. It accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The unit employs a green thermoplastic insulator body and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-edge female connector configuration with wire wrap termination style
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Low-profile thermoplastic insulator body designed for space-constrained panel installations

Edgeboard Connectors Applications

• Panel-mounted interconnects for single-sided PCBs
• Wire wrap terminal connections in industrial control systems
• Signal routing in electronic test and measurement equipment

Edgeboard Connectors Procurement Notes

Verify that the target application requires wire wrap termination rather than solder pin or surface mount options. Confirm the PCB thickness is compatible with the specified 1.57 mm nominal tolerance. Ensure the design supports single-edge card insertion and panel mounting requirements specific to the 307 series geometry.

Edgeboard Connectors Selection Notes

Select this component when a single-row, single-edge connector with wire wrap capability is required. The 3.96 mm pitch suits applications needing robust mechanical retention without high-density constraints. Consider the operating temperature range and insulation resistance specifications against environmental demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of card edge connectors, which are characterized by their standardized dimensions and versatile termination methods. The series offers various position counts and plating options, providing a scalable solution for diverse board-to-panel interface needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 307 series variants such as 307-010-547-158 for different position counts while maintaining identical pitch and termination styles.
