307-013-401-102

Edgeboard Connectors Overview

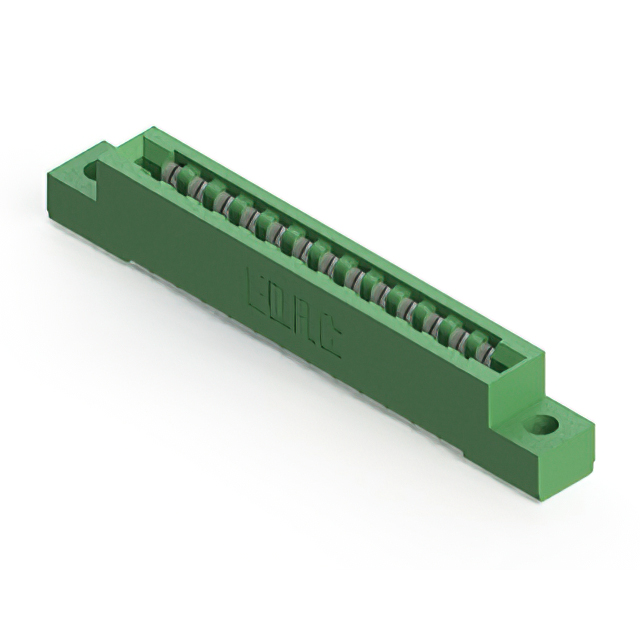

The EDAC Inc. 307-013-401-102 is a standard single-sided card edge connector designed for panel mounting applications. It features a vertical orientation with a 0.156-inch (3.96 mm) pitch and accommodates a board thickness of 1.57 mm. The connector provides 13 positions with gold-plated copper alloy contacts and utilizes a solder lug terminal type. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-sided configuration with 13 positions
• Gold-plated copper alloy contacts for reliable connection
• Vertical panel mount design with solder lug termination
• Thermoplastic insulator housing

Edgeboard Connectors Applications

• Panel-mounted electronic interconnections
• Industrial control system interfaces
• Telecommunications equipment connections

Edgeboard Connectors Procurement Notes

Verify the specific contact plating thickness and material composition against the official datasheet before procurement. Confirm that the panel cutout dimensions align precisely with the connector's mechanical specifications. Ensure the target printed circuit board thickness matches the 1.57 mm requirement for proper engagement. Check for RoHS compliance documentation if required by project standards.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required for panel mounting. The 0.156-inch pitch suits applications needing robust mechanical stability. Consider the solder lug termination method for secure attachment to chassis panels. Evaluate the 5 A current rating against the system's power distribution requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and termination styles. The 307-013-401-102 specifically addresses single-sided connectivity needs with a 13-position layout. It complements other variants in the family differing in row count or terminal type.

Edgeboard Connectors Replacement Considerations

Direct substitutes include EDAC part numbers within the 307 series sharing identical pitch, position count, and termination style. Verify mechanical compatibility and electrical ratings before substitution. Cross-reference with manufacturer-approved equivalents to ensure performance parity.
