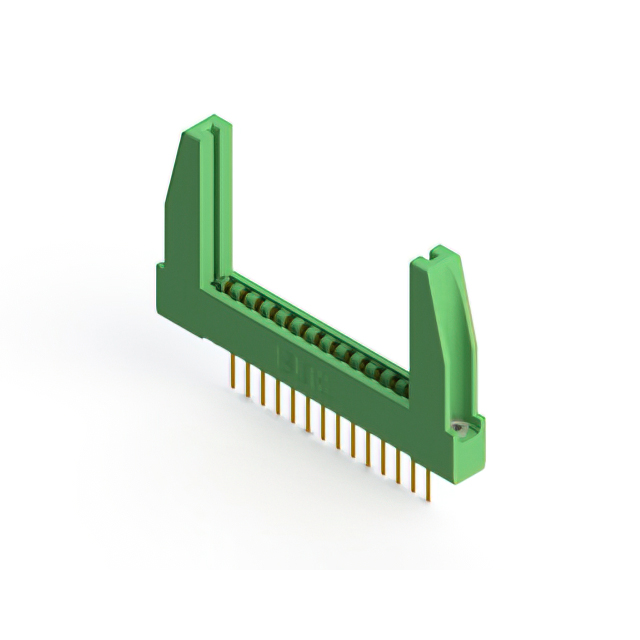

307-014-547-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 307-014-547-178
- Description：CONN EDGE SGL FMALE 14POS 0.156
- Series：307
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：14
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 307-014-547-178
Edgeboard Connectors Overview
The EDAC Inc. 307-014-547-178 is a standard card edge connector from the 307 series, designed for single-edge board applications. It features 14 positions with a 3.96 mm (0.156 inch) pitch and utilizes gold-plated copper alloy contacts. The unit supports a 5 A current rating and operates within a temperature range of -40°C to +105°C. It employs wire wrap termination and includes locking mechanisms for secure connection.
Edgeboard Connectors Feature Summary
- Single-edge female connector configuration
- Wire wrap termination style
- Integrated locking mechanism
Edgeboard Connectors Applications
- Single-sided circuit board interconnection
- Panel mount electronic assemblies
- Industrial control system interfaces
Edgeboard Connectors Procurement Notes
Verify the specific datasheet version for the 307-014-547-178 to confirm the exact termination type, as some sources indicate solder pin options while others specify wire wrap. Ensure the application environment does not exceed the specified thermal limits or current ratings. Cross-reference the mechanical dimensions against the target PCB layout to ensure proper fitment.
Edgeboard Connectors Selection Notes
Select this component when a single-edge connector with wire wrap termination is required. The 3.96 mm pitch accommodates standard board thicknesses around 1.57 mm. Consider the locking feature for vibration resistance. Verify compatibility with the mating card edge profile before finalizing the design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 307 Series, which offers various configurations for card edge connections. The series provides options for different contact counts, termination styles, and mounting angles. The 307-014-547-178 specifically addresses needs for single-edge applications requiring robust mechanical retention through its locking design.
Edgeboard Connectors Replacement Considerations
Check EDAC's official ordering guide for direct substitutes within the 307 series that may offer alternative termination methods or contact counts. No third-party cross-references are confirmed in the provided documentation.
