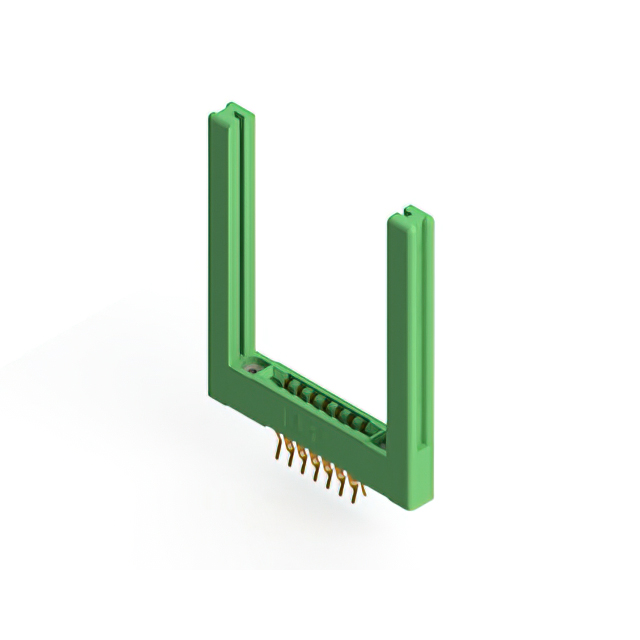

307-014-560-258 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 307-014-560-258
- Description：CONN EDGE DUAL FMALE 14POS 0.156
- Series：307
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Extender, Card Guides
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 307-014-560-258
Edgeboard Connectors Overview
The EDAC Inc. 307-014-560-258 is a standard card edge connector designed for dual female mating applications. It features 14 positions with a 3.96 mm (0.156 inch) pitch, accommodating board thicknesses between 1.37 mm and 1.78 mm. The component utilizes tin-plated copper alloy contacts and a green thermoplastic polyester insulator. Rated for 5 A current, it supports panel mount installation with a half-bellows contact type.
Edgeboard Connectors Feature Summary
- Dual female configuration for secure edgeboard engagement
- Half-bellows contact design ensures reliable electrical connection
- Thermoplastic polyester housing provides thermal stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument modules
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the official EDAC datasheet to confirm plating material and termination style. Ensure the selected variant matches the required board thickness range of 1.37 mm to 1.78 mm. Confirm RoHS compliance status through manufacturer documentation prior to integration into regulated assemblies.
Edgeboard Connectors Selection Notes
Select this connector when a dual-sided female interface is required for rigid PCBs within the specified thickness tolerance. The 3.96 mm pitch suits high-density layouts where space efficiency is critical. Consider the tin plating option for cost-effective applications requiring moderate corrosion resistance.
Edgeboard Connectors Part Context
This component belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and mounting configurations. The 307-014-560-258 specifically addresses needs for 14-position dual-mating connections in compact electronic enclosures.
Edgeboard Connectors Replacement Considerations
Cross-reference part numbers such as 307-014-560-278 or 307-014-560-204 if different plating materials are required. Verify mechanical compatibility before substituting with other series components.
