307-015-427-108

Edgeboard Connectors Overview

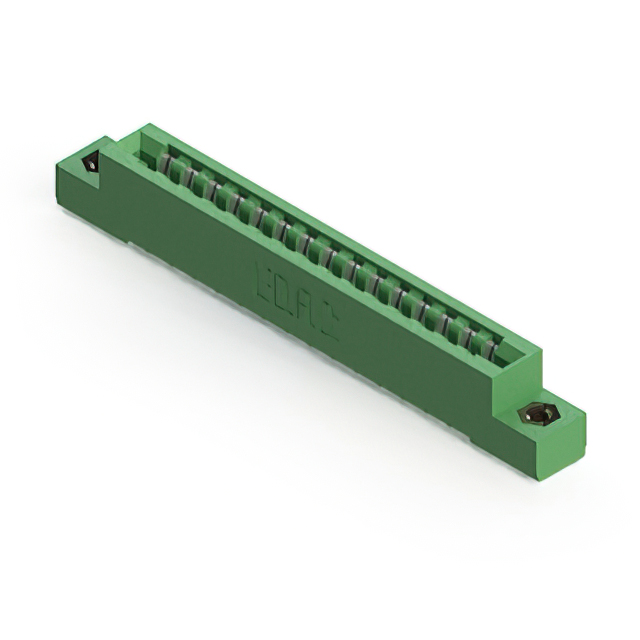

The EDAC Inc. 307-015-427-108 is a standard card edge connector receptacle featuring 15 positions with a 3.96 mm (0.156 inch) pitch. Designed for single-edge board insertion, it utilizes tin-plated copper alloy contacts and a green thermoplastic housing. The component supports panel mount installation at a vertical angle and accommodates PCB thicknesses of 1.57 mm. It operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for standard card edge boards
• Vertical panel mount style with integrated flange features
• Tin-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester housing providing structural stability

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane integration
• Test and measurement instrument module attachment
• Automotive electronic control unit interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact plating and orientation requirements. Ensure the target application board thickness aligns with the specified 1.57 mm tolerance. Confirm that the vertical panel mount style matches the mechanical enclosure design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 15-position connection is required for vertical panel mounting. The 3.96 mm pitch dictates compatible card edge dimensions. Tin plating offers cost-effective conductivity suitable for general-purpose applications where gold plating is not strictly mandated by environmental or wear specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors. The series provides various position counts and mounting styles. The 307-015 variant specifically addresses mid-range density requirements for single-edge applications, offering a balance between connectivity density and mechanical robustness for industrial environments.

Edgeboard Connectors Replacement Considerations

Cross-reference the 357 series for similar form factors if alternative plating options are needed. Verify compatibility with mating cards from other manufacturers using identical pitch and thickness specifications. No direct substitute part numbers are publicly confirmed for this exact configuration.
