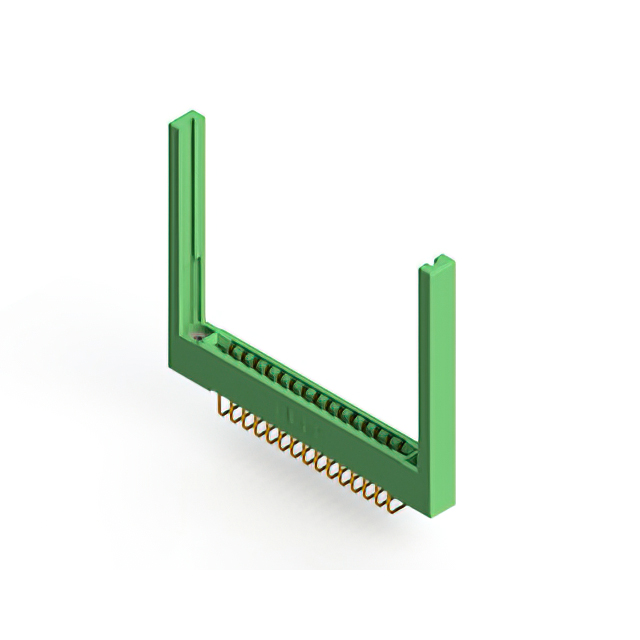

307-015-558-168

$12.27

Description：CONN EDGE SGL FMALE 15POS 0.156
Series：307
Mfr：EDAC Inc.
Package：Box

SKU:fe1bf7d5917b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

307-015-558-168 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 15POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 307-015-558-168

Description：CONN EDGE SGL FMALE 15POS 0.156
Series：307
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：15
Number of Positions：15
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：Card Guides
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 307-015-558-168

307-015-558-168

Edgeboard Connectors Overview

The EDAC Inc. 307-015-558-168 is a standard card edge connector from the 307 series, designed for panel mount applications with a right-angle orientation. It features 15 positions in a single row configuration with a contact spacing of 3.96 mm (0.156 inches). The connector utilizes gold-plated copper alloy contacts and accepts PCBs with a nominal thickness of 1.57 mm. Rated for 5 A current, it employs solder pin termination and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Single-row female connector design accepting non-specified card edge types
Gold-plated copper alloy contacts for reliable signal transmission
Panel mount construction with threaded flange inserts for secure installation

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific suffix 168 corresponds to the required flange feature configuration, specifically flush mount with top opening and threaded inserts. Confirm insulation material specifications match environmental requirements. Ensure the single-row layout aligns with the target PCB footprint dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 3.96 mm pitch is required for panel-mounted applications. The right-angle design facilitates space-constrained layouts. Verify that the 1.57 mm board thickness tolerance accommodates the target PCB manufacturing variations. Consider the 5 A rating for power distribution needs alongside signal integrity requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series, which is characterized by 3.96 mm contact spacing and 5.08 mm row spacing capabilities. The series supports various position counts and mounting styles. The 307-015 variant specifically denotes the 15-position configuration within this standardized family of high-reliability connectors.
