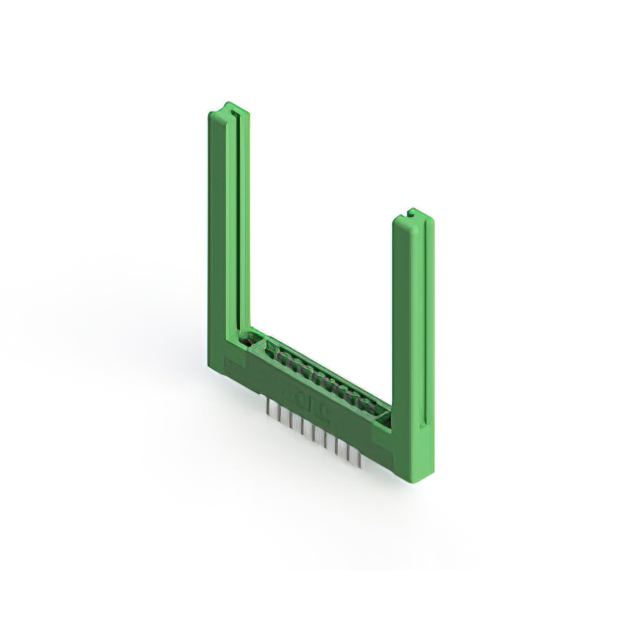

307-018-440-258 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 307-018-440-258
- Description：CONN EDGE DUAL FMALE 18POS 0.156
- Series：307
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：9
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 307-018-440-258
Edgeboard Connectors Overview
The EDAC Inc. 307-018-440-258 is a standard card edge connector receptacle featuring 18 positions with a 3.96 mm pitch. Designed for double-sided PCBs, it accommodates a board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and offers a current rating of 5 A. It employs a solder termination method and is constructed with a thermoplastic polyester housing. The connector supports vertical panel mounting orientation.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure card edge engagement
- Gold plating on copper alloy contacts ensures reliable conductivity
- Thermoplastic polyester housing provides structural stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment signal routing
- Computing hardware backplane connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix code to confirm exact termination style and orientation before procurement. Confirm RoHS compliance status through official manufacturer documentation. Ensure compatibility with the target PCB thickness of 1.57 mm. Validate that the 18-position layout matches the design footprint requirements.
Edgeboard Connectors Selection Notes
Select this model when a 3.96 mm pitch is required for high-current applications up to 5 A. Choose this variant for vertical panel mount installations. Consider the dual-row configuration if space efficiency is critical. Verify that the solder termination method aligns with the assembly process capabilities.
Edgeboard Connectors Part Context
This component belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and mounting styles. The 307 series is designed for general-purpose electronic interconnections. It supports both single and double-sided PCB integration.
Edgeboard Connectors Replacement Considerations
Cross-reference part numbers within the EDAC 307 series for alternative configurations. Verify mechanical dimensions and electrical ratings match exactly. Check for identical termination types and mounting orientations.
