307-018-459-207

Edgeboard Connectors Overview

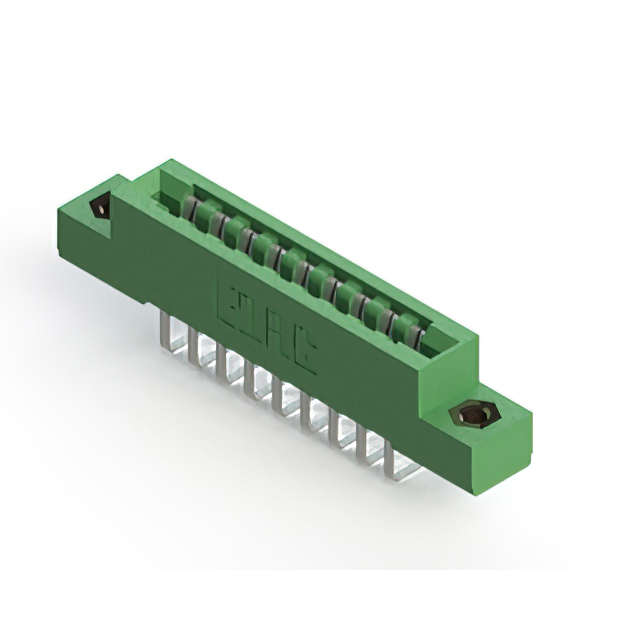

The EDAC Inc. 307-018-459-207 is a standard card edge connector designed for dual-edge board applications. It features an 18-position configuration with a 3.96 mm (0.156 inch) contact pitch. The connector utilizes a female contact type with tin plating and copper alloy construction. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The housing is made of green thermoplastic polyester, accommodating PCB thicknesses between 1.37 mm and 1.78 mm. Mounting is achieved via solder termination in a through-hole right-angle style.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure mating with double-sided circuit boards
• Thermoplastic polyester housing provides structural integrity and environmental resistance
• Copper alloy contacts ensure reliable electrical conductivity and mechanical durability
• Right-angle panel mount configuration facilitates compact spatial integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact termination style, plating material, and mounting orientation. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status. Confirm RoHS compliance requirements align with project regulations.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for right-angle mounting. Verify that the target printed circuit board thickness falls within the specified operational range. Ensure the application environment remains within the defined temperature limits. Confirm that the tin-plated contact finish meets the corrosion resistance needs of the intended deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and mounting configurations to support diverse electronic assembly requirements. The 307 series is engineered for high-reliability connections in demanding industrial and commercial environments, providing consistent performance across multiple product lines.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 307/357 Ordering Guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and mounting geometry. Verify that alternative components meet the same electrical and thermal specifications.
