307-018-524-208

Edgeboard Connectors Overview

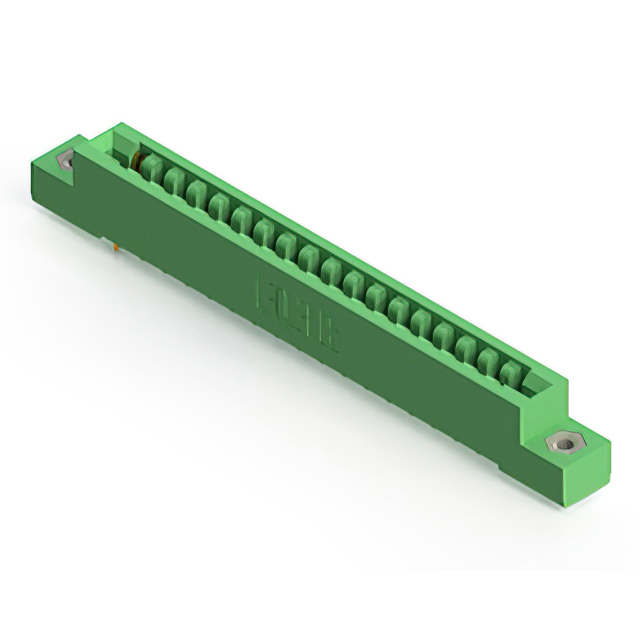

The EDAC Inc. 307-018-524-208 is a standard card edge connector from the 307 series, designed for dual female mating with printed circuit boards. It features 18 positions arranged in two rows with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The unit is intended for panel mount installation and accommodates board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester insulation provides structural stability
• Panel mount design facilitates fixed chassis integration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC ordering guide to confirm plating type and orientation. Ensure the target PCB thickness falls within the specified 1.37 mm to 1.78 mm range for proper mechanical engagement. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 18-position interface with a 3.96 mm pitch is required. Consider the 5 A current rating and -40°C to +105°C operating range for environmental suitability. Verify that the panel mount style aligns with the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and mounting styles, providing modular connectivity solutions for electronic assemblies requiring robust board-to-board or board-to-panel interfaces.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 307/357 Ordering Guide for direct substitutes with identical electrical and mechanical specifications. Cross-reference alternative manufacturers only if pinout and form factor compatibility are explicitly verified.
