307-022-524-212

Edgeboard Connectors Overview

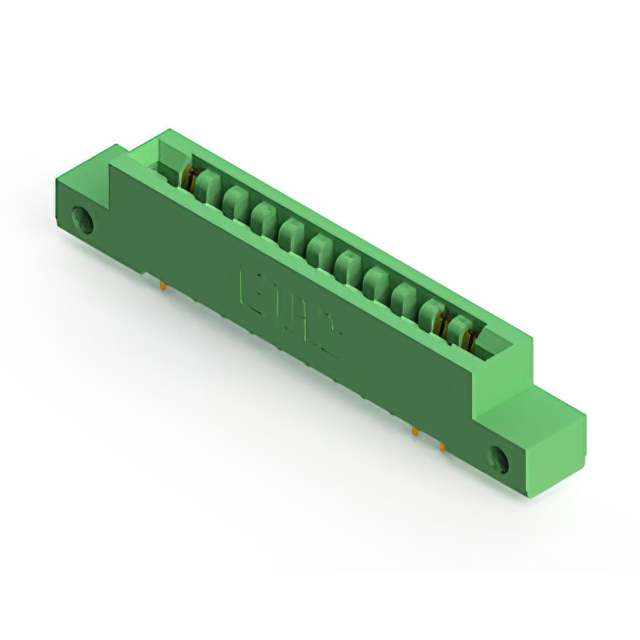

The EDAC Inc. 307-022-524-212 is a standard card edge connector from the 307 series, designed for dual-edge mating with a 22-position configuration. It features a 3.96 mm (0.156 inch) pitch and accommodates a board thickness of 1.57 mm. The connector utilizes copper alloy contacts with gold plating to ensure reliable signal transmission and corrosion resistance. Rated for 5 A current, it offers an insulation resistance of 5 GOhms. The housing is constructed from green thermoplastic material, providing durability and environmental stability.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure card insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic housing with green color coding
• Panel mount installation style for structural support

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Computing hardware module interfaces
• Test and measurement device connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and mounting variations. Ensure compatibility with the target PCB edge thickness and panel cutout dimensions before finalizing orders. Cross-reference manufacturer part numbers with distributor listings to avoid counterfeit components or incorrect revisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for robust mechanical retention in high-vibration environments. The 3.96 mm pitch suits applications needing wider spacing between signals. Verify that the 5 A current rating aligns with the circuit load requirements. Consider the panel mount style if chassis integration is necessary rather than direct PCB soldering.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors, which are widely used in modular electronic systems. The series offers various position counts and mounting options to accommodate different form factors. The 307-022-524-212 specifically addresses needs for dual-sided contact reliability in compact industrial layouts.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 307 series variants with matching 22-position dual-edge configurations. Verify pitch and board thickness compatibility when considering alternative manufacturers. Ensure equivalent current ratings and insulation resistance levels are maintained for safe operation.
