307-030-456-258

Edgeboard Connectors Overview

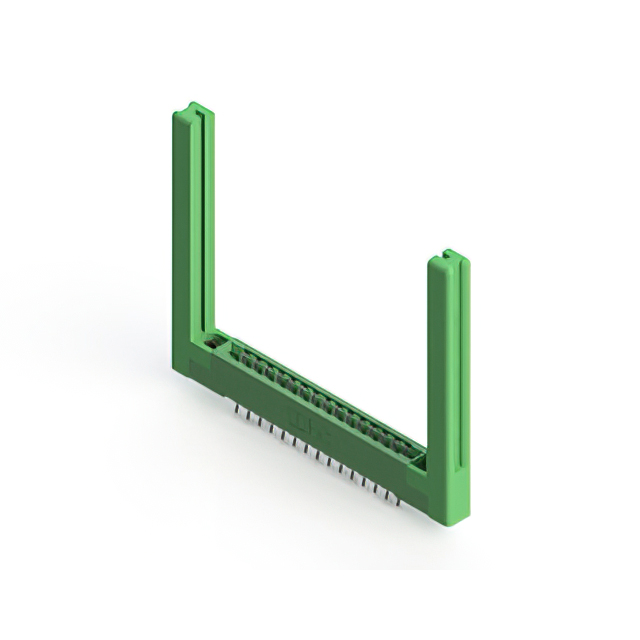

The EDAC Inc. part number 307-030-456-258 is a standard card edge connector classified as a header type within the 307 series. It features 30 positions with a pitch of 3.96 mm (0.156 inches) and is designed for a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. It supports a current rating of 5 A and employs a solder termination method for secure PCB attachment. The housing is constructed from thermoplastic material, providing necessary insulation and mechanical stability for industrial applications.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for robust card edge interface
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic housing material ensuring stable electrical insulation properties

Edgeboard Connectors Applications

• Power supply systems
• Data storage devices
• Navigational equipment
• Industrial control units

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet for the 307-030-456-258 to confirm exact physical dimensions and mating requirements. Ensure compatibility with the target printed circuit board thickness of 1.57 mm before integration. Cross-reference the pin count and row configuration against system design specifications to prevent installation errors. Confirm that the solder termination style aligns with the assembly process capabilities.

Edgeboard Connectors Selection Notes

Select this component when a 30-position dual-row card edge interface is required for high-reliability connections. The 3.96 mm pitch accommodates standard board layouts while maintaining adequate spacing. Consider the 5 A current rating for power distribution needs within the application. The gold plating offers durability in environments where oxidation resistance is critical for long-term performance.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 307 series, which provides standard card edge solutions for various electronic assemblies. The series is characterized by its use of thermoplastic housings and copper alloy contacts. This specific model serves as a header receptacle, complementing corresponding card edge modules in modular electronic systems.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify direct cross-references through official manufacturer channels if alternative sourcing is required.
