307-030-558-112

Edgeboard Connectors Overview

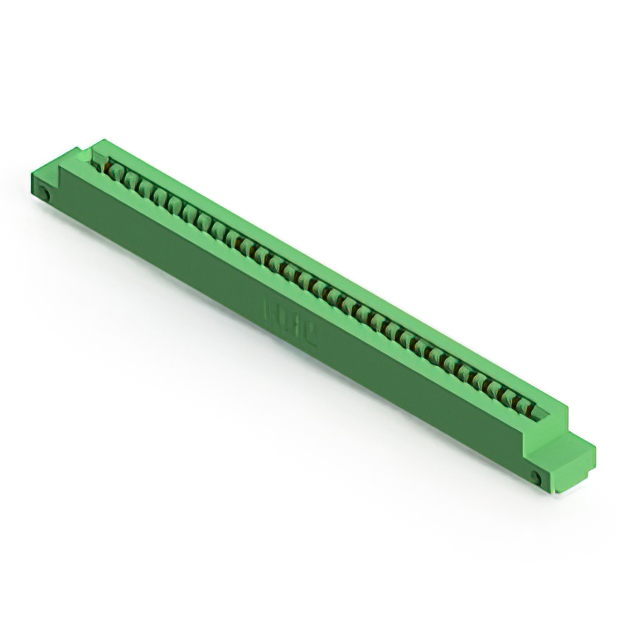

The EDAC Inc. 307-030-558-112 is a standard card edge connector from the 307 series, designed for single-row female connections. It features 30 positions with a contact spacing of 0.156 inches (3.96mm) and a row spacing of 5.08mm. The connector accepts PCBs with a nominal thickness of 1.57mm. Constructed with copper alloy contacts finished in gold plating, it utilizes a green thermoplastic insulator. The component supports panel installation and solder termination, ensuring reliable electrical performance within its specified operational range.

Edgeboard Connectors Feature Summary

• Single-row female configuration for non-specified edge board applications
• Gold-plated copper alloy contacts ensure durable signal integrity
• Thermoplastic insulator housing provides structural stability
• Panel mount design facilitates secure mechanical integration

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• General-purpose electronic circuit board assemblies

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required single-row configuration and 30-position count before procurement. Confirm compatibility with the target PCB thickness of 1.57mm to ensure proper insertion depth. Check for RoHS compliance requirements if operating in regulated environments. Ensure the supplier provides official datasheets to validate terminal type and mounting style specifications against project constraints.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with 3.96mm pitch is required for panel-mounted applications. The 30-position capacity suits moderate-density signal routing needs. Verify that the target printed circuit board adheres to the 1.57mm thickness specification for optimal contact engagement. Consider the gold plating finish for corrosion resistance in demanding operational environments compared to tin alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 307 Series, which specializes in standard card edge connectors. The series is characterized by a consistent 3.96mm contact spacing and robust construction suitable for various industrial and commercial electronics. The 307-030-558-112 variant specifically addresses single-row connectivity needs, distinguishing itself from dual-row counterparts within the same product family line.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 307 series parts sharing identical 30-position counts and single-row layouts. Verify that alternative suppliers offer components matching the 3.96mm pitch and 1.57mm board thickness constraints. Ensure any substitute maintains the same panel mount orientation and solder termination method to preserve mechanical fit.
