307-032-455-208

Edgeboard Connectors Overview

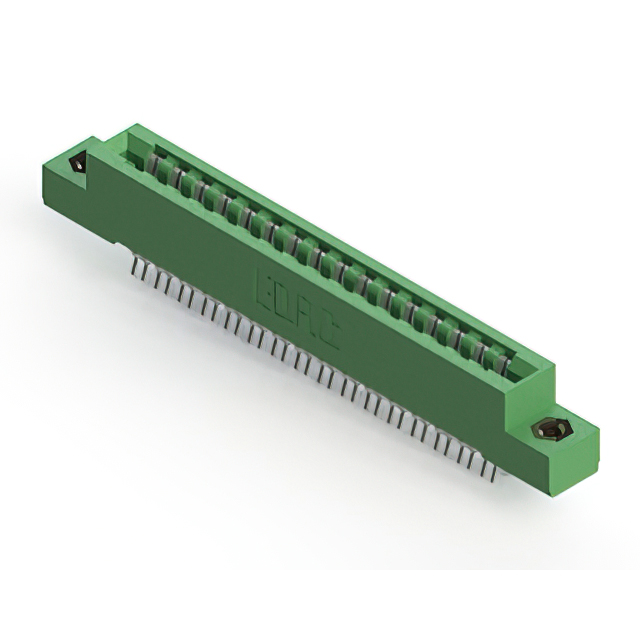

The EDAC Inc. 307-032-455-208 is a standard card edge connector from the 307 series, designed for reliable signal transmission in electronic assemblies. This receptacle features 32 positions with a 3.96 mm pitch and supports a maximum current rating of 5 A. It utilizes gold-plated copper alloy contacts housed in a green thermoplastic polyester body. The component is configured for PCB mount installation with straight termination and solder end-type connections. It operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure stable electrical connectivity and corrosion resistance.
• Thermoplastic polyester housing provides structural integrity and thermal stability.
• Straight PCB mount configuration facilitates direct board integration.

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Test and measurement instrumentation backplanes

Edgeboard Connectors Procurement Notes

Verify specific ordering suffixes against official EDAC documentation to confirm plating type and orientation. Confirm RoHS compliance status through manufacturer datasheets prior to procurement. Ensure compatibility with target PCB thickness specifications during design validation.

Edgeboard Connectors Selection Notes

Select this model when a 32-position dual-edge connector with 3.96 mm spacing is required. Verify that the application environment stays within the specified -40°C to +105°C operating range. Confirm that the 5 A current rating meets circuit requirements and that the straight PCB mount style aligns with mechanical layout constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic design needs. The 307-032-455-208 specifically addresses applications needing 32 positions with a 3.96 mm pitch.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Cross-reference pin count, pitch, and mounting style when evaluating potential replacements.
