Edgeboard Connectors Overview

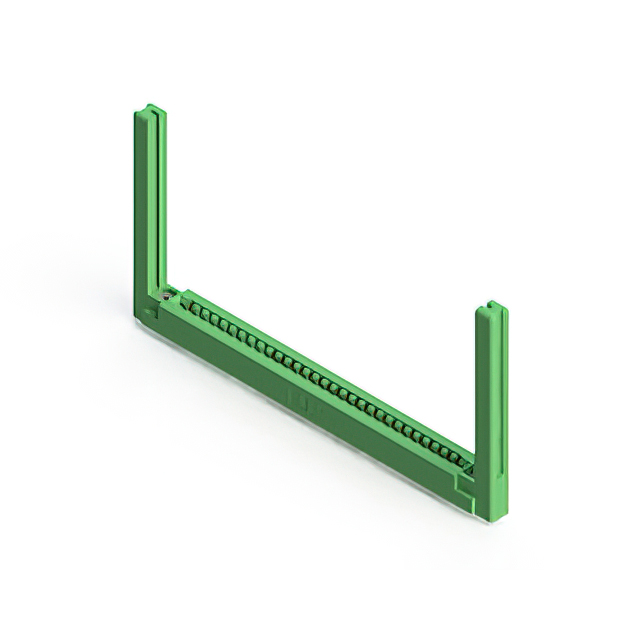

The EDAC Inc. 307-060-500-258 is a standard card edge connector receptacle featuring 60 positions with a 3.96 mm (0.156 inch) pitch. Designed for dual-edge female connections, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports PCB mount installation in a straight orientation and accommodates board thicknesses of 1.57 mm. It carries a 5 A current rating and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure mating with non-specified double-sided circuit boards.
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance.
• Thermoplastic polyester insulation provides structural stability and thermal endurance.
• Straight PCB mount style facilitates direct vertical integration into assembly layouts.

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Automotive electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm plating thickness and material specifications. Ensure compatibility with target PCB dimensions and mounting requirements before procurement. Cross-reference datasheet parameters to validate electrical ratings for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a high-density 60-position interface is required with a 3.96 mm pitch. Confirm that the dual-edge receptacle design aligns with the mechanical constraints of the host system. Evaluate the straight mounting angle and PCB thickness tolerance to ensure proper fit and electrical performance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic assembly needs. The 307-060-500-258 variant specifically addresses applications requiring robust dual-edge connectivity with standardized spacing.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 307 series ordering guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and mounting characteristics.
