307-084-524-201

Edgeboard Connectors Overview

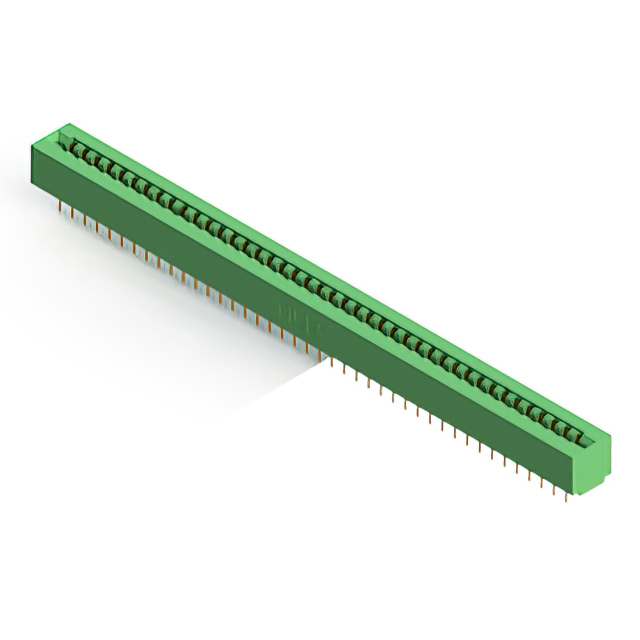

The EDAC Inc. 307-084-524-201 is a standard card edge connector receptacle featuring 84 positions with a 3.96 mm pitch and dual rows. It utilizes gold-plated copper alloy contacts for reliable signal transmission and is housed in a thermoplastic polyester insulator. Designed for PCB mounting, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The component supports a current rating of 5 A per contact and offers an insulation resistance of 5 GOhms. It operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 84 connection positions
• Gold-plated copper alloy contacts for durability
• Compatible with 1.57 mm nominal thickness PCBs
• Thermoplastic polyester housing material

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Computing hardware interfaces
• Test and measurement devices

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the board thickness matches the specified 1.57 mm nominal dimension. Check for RoHS compliance status if required by your manufacturing standards. Confirm lead times and availability through authorized distributors or direct manufacturer channels prior to finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a high-density, dual-sided card edge interface is required. The 3.96 mm pitch allows for significant I/O density within a compact footprint. Consider the 5 A current rating and thermal performance limits when designing the system. Verify that the mating card edge meets the mechanical tolerances for the 1.57 mm board thickness specification.

Edgeboard Connectors Part Context

This component belongs to the EDAC 307 series of standard card edge connectors. The series is characterized by its robust construction and compatibility with various industrial applications. The 307-084-524-201 variant specifically addresses needs for high-pin-count connections in dual-row configurations, offering a balance of electrical performance and mechanical stability.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the precise 3.96 mm pitch or 1.57 mm board thickness tolerance. Ensure any replacement maintains the same contact plating and insulation resistance specifications.
