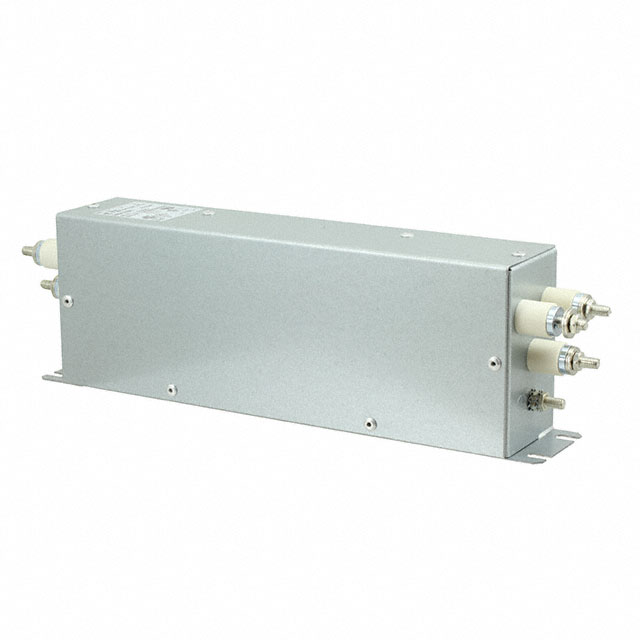

30BCF6R

$228.04

Description：LINE FILTER 30A CHASSIS MOUNT
Series：BCFXR
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:e3b2fcea608b Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 30A CHASSIS MOUNT
Series：BCFXR
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：30 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 50°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M5)
Inductance：1.6mH
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

30BCF6R

Overview

The 30BCF6R is a three-phase RFI power line filter manufactured by TE Connectivity Corcom Filters. It supports a maximum current of 30 A and operates at voltages up to 277 VAC. The unit features a two-stage filtering design with a capacitance of 0.1 µF and a maximum leakage current of 8.7 mA. Designed for chassis mounting, it utilizes a general-purpose configuration suitable for industrial applications requiring robust electromagnetic interference suppression.

Feature Summary

Two-stage RFI filtering architecture
Chassis mount installation style
Three-phase power handling capability

Applications

Industrial machinery power input
Three-phase equipment EMI suppression
General purpose power line conditioning

Procurement Notes

Verify the specific datasheet version for the 30BCF6R model to confirm exact terminal types and mounting hole dimensions. Ensure the application voltage does not exceed the 277 VAC rating. Cross-reference the part number alias 3-1609989-2 if sourcing from distributors using alternate nomenclature. Confirm compliance requirements match the target market standards.

Selection Notes

Select this component when a three-phase solution is required for high-current applications up to 30 A. The 277 VAC rating makes it suitable for standard industrial power distributions. Consider the 8.7 mA leakage current limit for sensitive equipment connections. The chassis mount form factor requires adequate panel space and thermal management in the final enclosure design.

Part Context

This component belongs to the Corcom power line filter series, designed for electromagnetic interference reduction in AC power systems. The manufacturer specializes in connectivity and filtration solutions for demanding industrial environments. The product integrates passive filtering elements within a durable housing to meet regulatory emission standards.

Replacement Considerations

The part number alias 3-1609989-2 refers to the same component. Verify physical dimensions and terminal configurations before substituting with other three-phase filters in the Corcom lineup.
