30DBCS5B

Overview

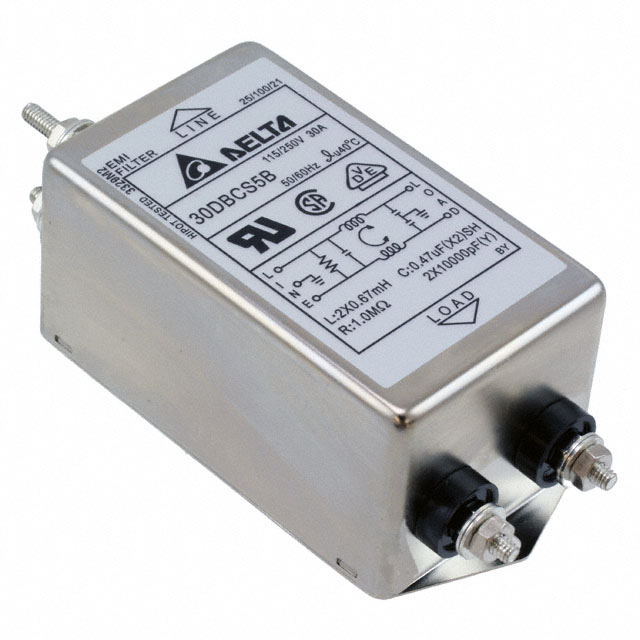

The Delta Electronics 30DBCS5B is a single-stage, general-purpose power line filter designed for chassis mounting. It supports AC voltages of 115VAC and 250VAC with a rated current of 30A. The unit operates at frequencies of 50Hz and 60Hz. Termination is achieved via threaded posts (8-32). It features a leakage current of 2mA and is constructed for robust industrial applications requiring EMI/EMC suppression.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• Chassis mount installation style
• Threaded post termination

Applications

• Industrial machinery power input stages
• Medical equipment EMC compliance
• General purpose AC power distribution systems

Procurement Notes

Verify the specific datasheet revision to confirm terminal type and voltage ratings. Ensure chassis mounting holes align with mechanical drawings. Confirm environmental operating conditions match application requirements before finalizing procurement decisions.

Selection Notes

Select this component when single-stage attenuation is sufficient for the noise profile. Verify that the 30A current rating accommodates peak loads. Ensure the 250VAC rating matches the system voltage. Check physical dimensions for chassis integration constraints.

Part Context

This component belongs to the Delta 30D series of power line filters. These units are engineered for electromagnetic interference suppression in AC power lines. The series offers various current ratings and stage configurations to meet diverse EMC standards.

Replacement Considerations

Consult official Delta documentation for direct substitutes. Verify electrical parameters and mechanical footprint compatibility before considering alternative models from other manufacturers.
