30DKCS5

Overview

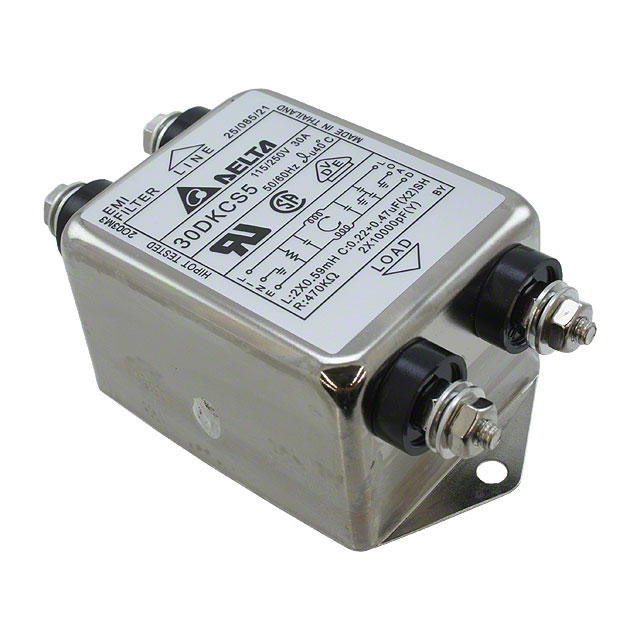

The Delta Electronics 30DKCS5 is a single-phase, single-stage EMI/RFI power line filter designed for chassis mounting. It supports voltage ratings of 115 VAC and 250 VAC with a current rating of 30 A. The unit operates at frequencies of 50 Hz and 60 Hz and features terminal block termination. Leakage current ranges from 0.25 mA to 0.45 mA. It is packaged in bulk quantities.

Feature Summary

• Single-stage filtering architecture for general-purpose EMI suppression
• Chassis mount design with screw-screw termination style
• Compliant with UL, CSA, and VDE safety standards

Applications

• Industrial machinery power conditioning
• Medical equipment noise reduction
• General purpose electronic device protection

Procurement Notes

Verify the specific datasheet version as product availability may vary. Confirm that the terminal block type matches your wiring requirements. Check for end-of-life status or obsolescence notices from Delta Electronics before finalizing procurement plans to ensure long-term supply stability.

Selection Notes

Select this component when a single-stage solution is sufficient for EMI attenuation needs. Ensure the installation environment accommodates chassis mounting constraints. Verify that the 30 A current rating aligns with the maximum load requirements of the protected circuit to prevent overheating or failure during operation.

Part Context

This component belongs to the Delta Electronics DP series of power line filters. It serves as an electromagnetic interference suppression device for AC power lines. The filter is engineered to reduce conducted emissions and improve power quality in sensitive electronic applications requiring compliance with regulatory standards.

Replacement Considerations

The 30DBCS5B is a documented substitute within the same manufacturer lineup. Both parts share similar electrical ratings including 30 A current capacity and chassis mounting styles. Verify mechanical dimensions and terminal compatibility before swapping units in existing designs.
