30DKCS5B

Overview

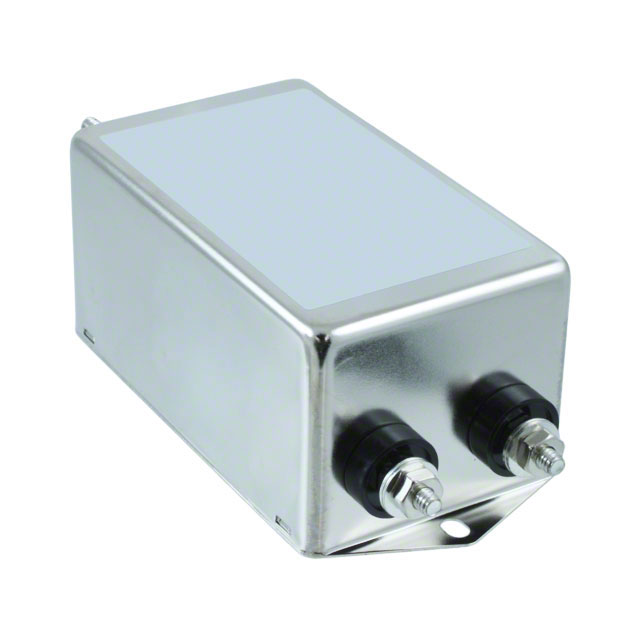

The Delta Electronics 30DKCS5B is a single-phase, general-purpose EMI power line filter designed for chassis mounting. It supports rated AC voltages of 115VAC and 250VAC with a continuous current rating of 30A. The unit operates at standard frequencies of 50Hz and 60Hz. Termination is achieved via threaded posts (8-32). It carries UL, CSA, and VDE certifications.

Feature Summary

• Provides effective electromagnetic interference suppression for general purpose applications
• Features robust chassis mount construction with screw termination style
• Complies with major international safety standards including UL, CSA, and VDE

Applications

• Industrial machinery power input stages
• Commercial equipment requiring EMI filtering
• General purpose electronic systems

Procurement Notes

Verify the specific datasheet version to confirm leakage current limits and hipot ratings, as values may vary by voltage. Confirm that the 8-32 threaded post termination matches your panel design. Check for end-of-life status or obsolescence notices from Delta Electronics before finalizing procurement plans.

Selection Notes

Select this component when a single-stage filter is sufficient for noise reduction requirements. Ensure the 30A current capacity meets the load demands. Verify that the chassis mounting style fits the enclosure constraints. Compare against the 30DBCS5B if different certification or configuration needs arise.

Part Context

This part belongs to the DB series of power line filters manufactured by Delta Electronics. It is categorized under power condition modules. The series is designed for general purpose EMI suppression in AC power lines.

Replacement Considerations

The 30DBCS5B is a related model within the same product family. Verify if the specific configuration differences between these part numbers meet your application requirements.
