Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 30A CHAS
- Series：DP
- Mfr：Delta Electronics
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (8-32)
- Inductance：600µH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

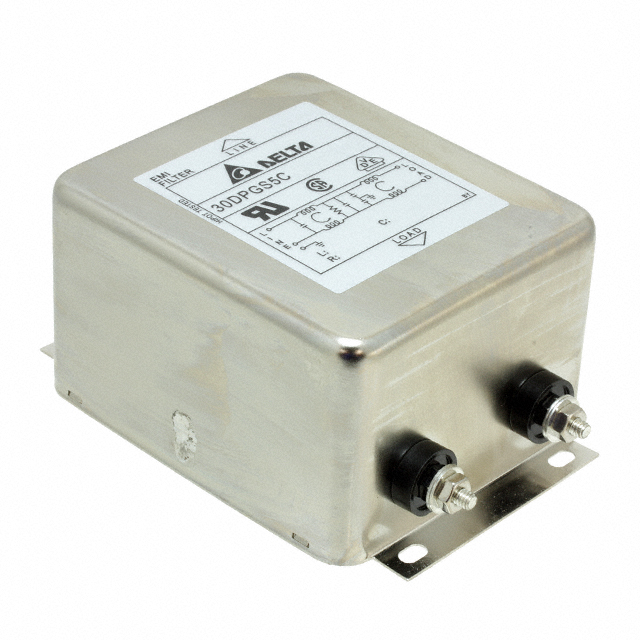

The Delta Electronics 30DPGS5C is a single-phase, two-stage EMC/EMI power line filter designed for chassis mounting. It supports rated voltages of 115VAC and 250VAC with a current rating of 30A. The component operates at frequencies of 50Hz and 60Hz and features a leakage current of 2mA. It utilizes screw-screw terminal connections and includes threaded posts (8-32). The unit is certified by CSA, UR, and VDE agencies.
Feature Summary
- Two-stage filtering architecture for effective switching transient suppression
- Chassis mount design with robust screw-screw terminal interface
- Certified compliance with major safety standards including CSA, UR, and VDE
Applications
- Industrial machinery power input stages
- Medical equipment electromagnetic compatibility
- Telecommunications infrastructure power supplies
Procurement Notes
Verify the End-of-Life status before procurement planning. Confirm that the 8-32 threaded post terminals match existing panel hole specifications. Ensure the 30A current rating aligns with system load requirements. Check for updated datasheets to confirm final availability dates and any potential form-fit-function changes prior to ordering.
Selection Notes
Select this model when high-current single-phase filtering is required in space-constrained chassis environments. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the 480VAC voltage rating meets insulation requirements. Consider the screw-screw termination style for secure wiring in high-vibration applications.
Part Context
This component belongs to the DP series of power line filters from Delta Electronics. The series provides various current ratings and configuration options for EMI suppression. The 30DPGS5C specifically addresses high-current applications requiring robust mechanical mounting and certified safety performance for global deployment.
Replacement Considerations
No direct public substitute part numbers are confirmed. Due to the End-of-Life status, alternative designs must be evaluated for current capacity, voltage ratings, and physical dimensions.
