30ESK6

Overview

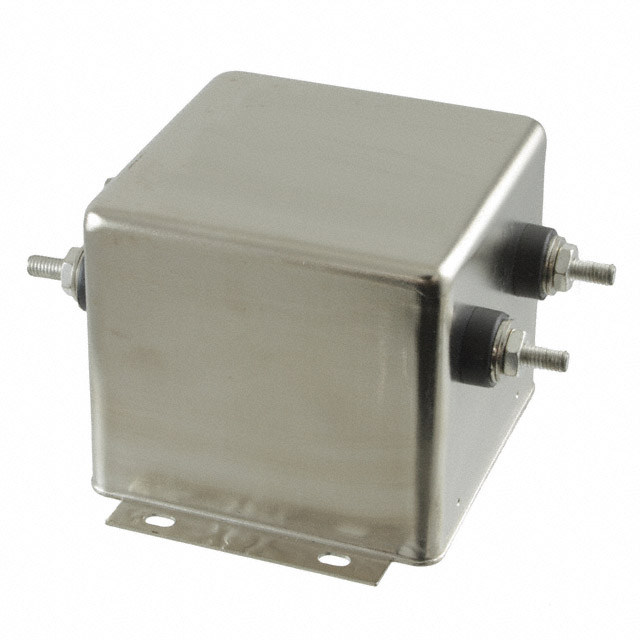

The TE Connectivity Corcom Filters 30ESK6 is a single-phase general-purpose EMI/RFI power line filter rated for 30 A and 250 VAC at 50/60 Hz. It utilizes a single-stage design to reduce conducted noise. The unit features flange mounting with threaded post terminals (10-32).

Feature Summary

• Single-phase EMI/RFI filtering capability
• Flange mount construction
• Threaded post terminal connections

Applications

• Industrial equipment noise suppression
• Power supply input filtering
• General purpose EMI reduction

Procurement Notes

Verify the specific datasheet version for the 30ESK6 part number, as TE Connectivity product portfolios undergo frequent revisions. Confirm that the 10-32 threaded post terminal style matches your assembly requirements. Check current availability status directly with authorized distributors, as lead times may vary.

Selection Notes

Select this component when a single-phase, high-current (30A) solution is required for chassis or panel mounting. Ensure the application voltage does not exceed 250 VAC. Verify that the physical dimensions of the flange mount fit the available enclosure space and that the 10-32 terminal pitch aligns with the wiring harness.

Part Context

This component belongs to the Corcom SK series of power line filters. The series offers various current ratings and mounting styles for industrial applications. The 30ESK6 specifically addresses single-phase needs with a robust flange-mounted design suitable for heavy-duty environments requiring significant current handling.

Replacement Considerations

Consult official TE Connectivity documentation for direct cross-reference part numbers. Ensure any substitute maintains the 30 A rating, 250 VAC specification, and compatible 10-32 threaded terminal interface.
