30ESK6C

Overview

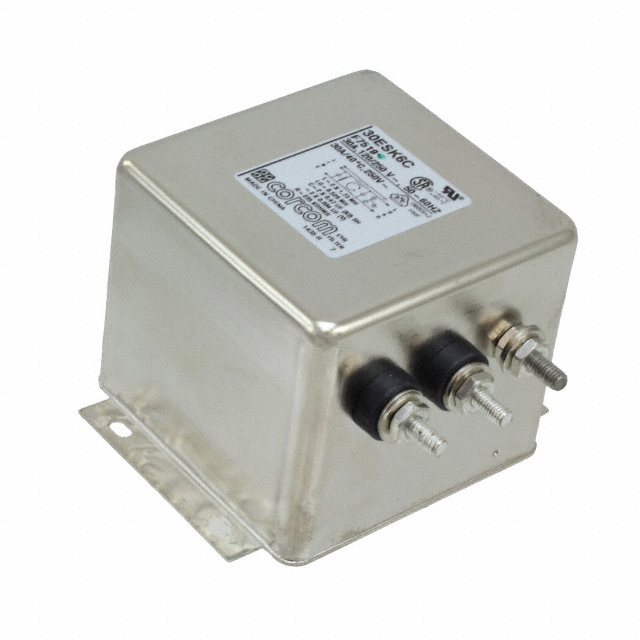

The 30ESK6C is a single-phase EMC/EMI power line filter from the TE Connectivity Corcom series. It features a 30 A current rating and operates at 250 VAC. The unit supports 50 Hz and 60 Hz frequencies with a single-stage configuration. Physical dimensions include a threaded stud terminal style for flange mounting. Operating temperature ranges from -10°C to +40°C. Certifications include CSA, UR, and VDE compliance.

Feature Summary

• Single-stage EMI/RFI noise reduction for conducted interference
• Threaded stud terminal design for secure chassis attachment
• General-purpose filtering capability for AC power lines

Applications

• Industrial machinery power conditioning
• Commercial equipment noise suppression
• General purpose AC power line filtering

Procurement Notes

Verify exact specifications against the official datasheet before integration. Confirm terminal compatibility and mounting requirements match the target chassis design. Ensure environmental conditions remain within the specified operating temperature range. Check for updated certification status relevant to the final assembly region.

Selection Notes

Select this component for applications requiring single-phase filtering at 30 A. The threaded stud interface suits high-vibration environments. Verify voltage ratings align with the system's nominal AC supply. Consider physical space constraints relative to the flange mount footprint.

Part Context

This part belongs to the Corcom high-current AC power line filter family. It addresses electromagnetic interference in sensitive electronic systems. The design focuses on reliable noise attenuation in industrial and commercial settings.

Replacement Considerations

Consult official substitution guides for equivalent performance. Verify pinout and mechanical dimensions match existing layouts. Ensure replacement parts maintain identical certification approvals.
