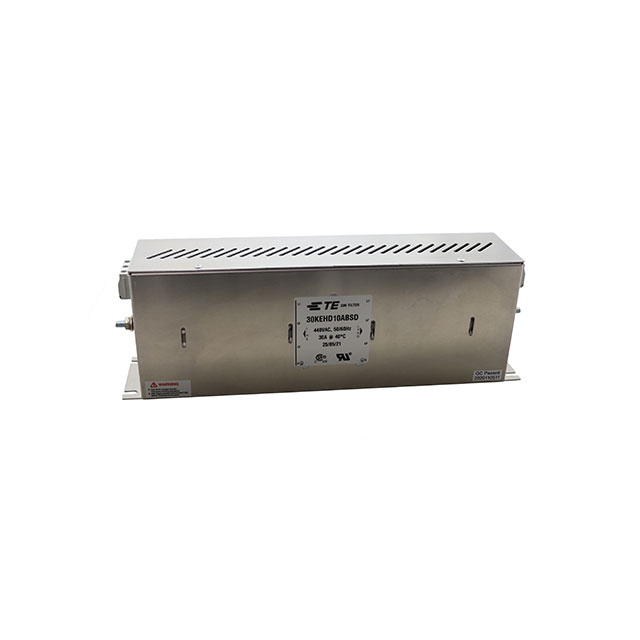

30KEHD10ABSD

$205.88

Description：LINE FILTER 440VAC 30A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box

SKU:d91a4509241e Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 440VAC 30A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：440V
Current：30 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

30KEHD10ABSD

Overview

The 30KEHD10ABSD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom Filters. It features a dual-stage configuration designed for industrial applications. The unit supports a rated voltage of 440 VAC and handles a current capacity of 30 A at operating frequencies of 50 Hz and 60 Hz. It utilizes terminal block connections for secure wiring and is designed for chassis mounting. The filter complies with UL and CSA safety standards.

Feature Summary

Dual-stage filtering architecture for enhanced noise suppression
Chassis mount design for robust industrial integration
Terminal block termination for reliable electrical connection

Applications

Industrial machinery power conditioning
Three-phase equipment EMC compliance
Factory automation systems

Procurement Notes

Verify the specific datasheet version before procurement, as component specifications may evolve. Confirm that the terminal block interface matches existing panel layouts. Ensure the chassis mounting dimensions align with the installation enclosure. Validate that the 440VAC rating meets the system requirements. Check for any recent regulatory updates regarding UL or CSA certifications.

Selection Notes

Select this model when a three-phase solution is required for 440VAC systems. The 30A current rating suits moderate to high-power industrial loads. Consider the chassis mount style if space constraints preclude PCB mounting. Verify that the dual-stage performance meets specific emission limits. Ensure the terminal block type fits the available wiring infrastructure.

Part Context

This component belongs to the KEH-BS series of power line filters from TE Connectivity Corcom Filters. The series is engineered for demanding environments requiring effective electromagnetic interference reduction. The KEH-BS designation indicates specific construction and performance characteristics tailored for three-phase delta configurations in industrial settings.
