Product Detailed Parameters
- Description：LINE FILTER 440VAC 30A CHASS MNT
- Series：KEH-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：30 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

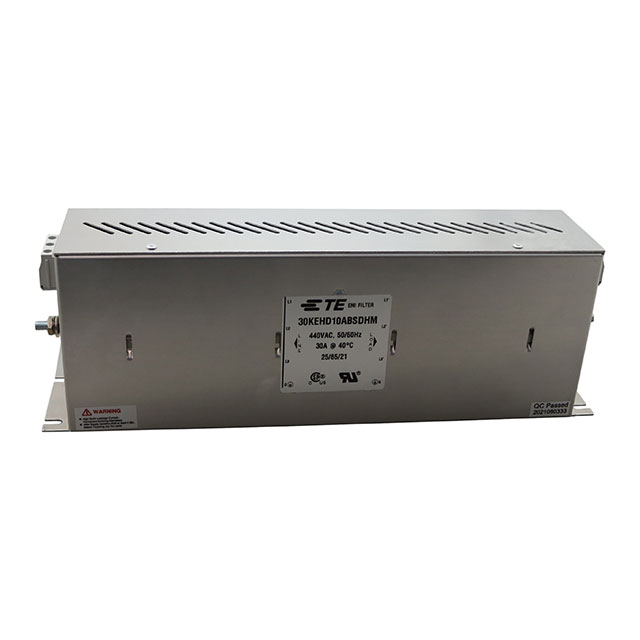

The TE Connectivity Corcom Filters 30KEHD10ABSDHM is a three-phase EMC/EMI line filter designed for industrial power applications. It operates at a rated voltage of 440 VAC and supports a continuous current of 30 A. The unit features a two-stage filtering configuration to ensure effective noise suppression across 50 Hz and 60 Hz frequencies. Installation is facilitated via DIN rail mounting, providing secure integration into control panels. Electrical connections are established using terminal block interfaces, ensuring reliable contact under high-load conditions.
Feature Summary
- Three-phase EMI/EMC filtering capability for robust noise suppression
- Two-stage design architecture for enhanced signal integrity
- DIN rail mounting style for standardized panel integration
- Terminal block termination for secure electrical connections
Applications
- Industrial machinery requiring three-phase power conditioning
- Manufacturing equipment needing EMC compliance
- Power distribution systems operating at 440 VAC
- Control panels utilizing DIN rail infrastructure
Procurement Notes
Verify the specific suffix against official TE Connectivity documentation to confirm exact rating configurations. Confirm that the component meets required safety certifications such as UL or CSA for your region. Check for any recent product change notices (PCN) regarding manufacturing updates. Ensure compatibility with existing DIN rail standards in your assembly. Validate thermal management requirements for the intended enclosure environment.
Selection Notes
Select this model when three-phase filtering is mandatory for 30 A loads at 440 VAC. The DIN rail format suits applications where space efficiency and standard mounting are priorities. Compare leakage current specifications against sensitive equipment limits. Ensure the terminal block type matches available wiring methods. Verify that the two-stage attenuation meets specific emission standards.
Part Context
This component belongs to the TE Connectivity Corcom KEM series of power line filters. These units are engineered for general-purpose industrial use, focusing on reliability in harsh environments. The series typically offers various current ratings and mounting options to accommodate diverse system architectures while maintaining consistent filtering performance.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for verified cross-references. Ensure any alternative component matches the 30 A current rating and 440 VAC voltage specification exactly.
